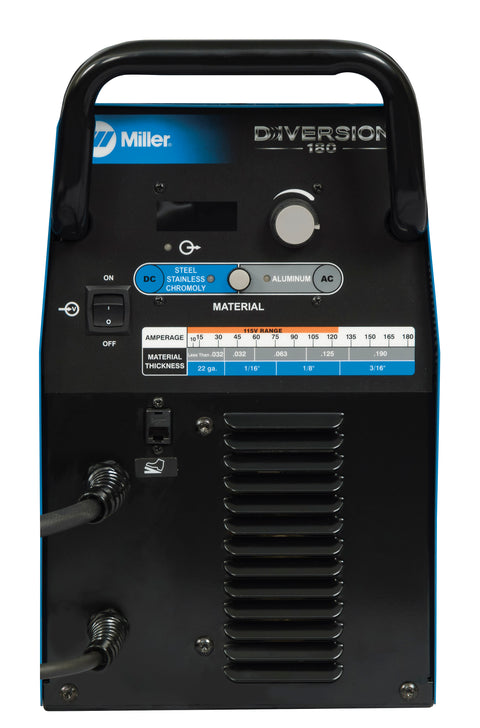

Miller Diversion 180 AC/DC TIG Welder
Miller Diversion 180 AC/DC TIG Welder
  • SKU: 907627
  • Brand: Miller Electric

Miller Diversion 180 AC/DC TIG Welder

On Sale
Save $613.00

Perfect for the personal user, this AC/DC TIG machine upgrade has both 120V and 240V input power capability.

Regular price $2,902.00 Sale price $2,289.00
  • Earn 4578 Reward Points

  • Free Shipping over $75
  • Satisfaction Guaranteed
  • Secure Checkout
  • Description
  • Specs
  • DOCUMENTS
  • ACCESSORIES
Description

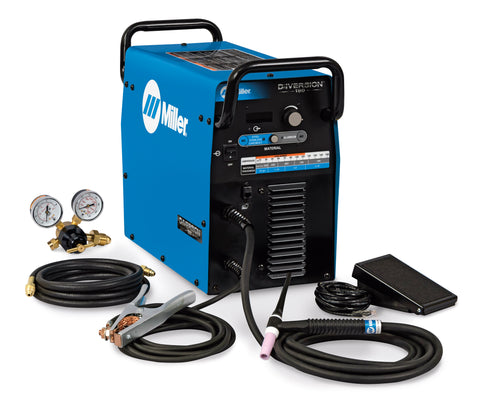

What's Included

  • Diversion™ 180
  • Regulator/flow gauge and gas hose
  • RFCS-RJ45 remote foot control (300432)
  • 8 ft. (2.4 m) primary cord with MVP™ plugs for 120 V (219261) and 240 V (219258)
  • 12.5 ft. (3.8 m) Weldcraft™ A-150 TIG torch
  • 12 ft. (3.7 m) work cable with clamp
  • Specifications

    Processes

    TIG (GTAW)
    TIG AC (GTAW-AC)
    TIG DC (GTAW-DC)
    Aluminum Welding

    General Specifications

    Title Diversion™ 180 TIG Welder
    Industries Interests Aerospace
    Racing / Customizing / Restoring
    Construction
    DIY / Home Hobbyist
    Farm and Ranch
    Heavy Equipment Manufacturing
    Infrastructure
    Metal Art / Sculptures
    Railcar
    Shipbuilding
    Boat / Yacht
    High Purity Processing
    Manufacturing
    Material Thickness Steel: 0.025 in. (0.6 mm) - 3/16 in. (4.8 mm)
    Aluminum: 0.030 in. (0.75 mm) - 3/16 in. (4.8 mm)
    Weldable Metals Aluminum
    Steel
    Stainless Steel
    Input Voltage 110/115/120 V
    208 V
    220/230/240 V
    Input Phase 1-Phase
    Input Hz 50 / 60 Hz
    Current Type AC / DC
    Max Open Circuit Voltage 80 VDC
    Amperage Min 10 A
    Amperage Max 180 A
    Portability Handle(s)
    Running Gear / Cart (Optional)
    Weld Output CC
    Net Width 9.875 in
    Net Height 17 in
    Net Length 23.875 in
    Net Weight 50 lbs
    Warranty 3 Years
    Miller's True Blue Warranty

    Documents

    Diversion 180 Spec Sheet

    Accessories
