Lincoln Square Wave TIG 200 Rebate

Features

ADVANCED FEATURES YET EASY TO USE

The user interface makes machine setup easy. Available features, such as Pulse, which provides a drumbeat-like rhythm for filler metal deposition, make you become a better TIG welder – faster.

It is designed to help expand your welding expertise. As your skills and confidence grow, you can take advantage of the Square Wave TIG 200’s additional functionality. No matter your skill level, you won’t be disappointed.



  • A Great TIG Machine for Aluminum - For a wider or tighter welding bead, users can easily adjust AC Frequency Control. AC Balance can be adjusted to provide more cleaning action on dirty aluminum or to maximize penetration
    on thick materials.

  • TIG and Stick from One Power Source - The multi-process machine can TIG weld when precision and bead appearance are important. Users also have the advantage of stick welding capability for outdoor work or thicker materials.

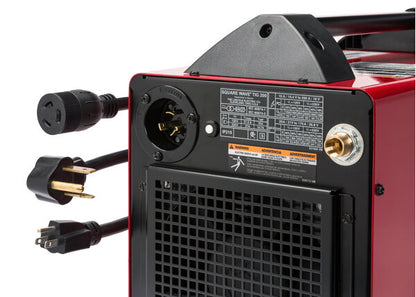

  • Take it Everywhere, Plug in Anywhere.™ - Plug in the Square Wave TIG 200 where you need it – a standard 120V circuit or 230V for maximum output. Portable and convenient to use, only 46 lb (21 kg).



Includes:

K1782-14 PTA-17 TIG Torch Ready-Pak®
K870 Foot Amptrol™
Gas Regulator/Flowmeter and 10 ft. (3 m) Gas Hose Kit
200A Stick Electrode Holder
Ground Clamp and Cable
120 and 230V Input Cords
Input Power
  • 120/230/1/50/60
Rated Output
  • 120V:
  • TIG: 125A/25% (AC TIG 110A/25%)
  • TIG: 100A/40%
  • TIG: 85A/60%
  • Stick: 75A/20%
  • Stick: 65A/60%

  • 230V:
  • TIG: 200A/25%
  • TIG: 160A/40%
  • TIG: 130A/60%
  • Stick: 170A/20%
  • Stick: 100A/60%
Input Current
  • 120V:
  • TIG: 25% Duty Cycle 21A
  • TIG: 40% Duty Cycle 17A
  • TIG: 60% Duty Cycle 14A
  • Stick: 20% Duty Cycle 19A
  • Stick: 60% Duty Cycle 16A

  • 230V:
  • TIG: 25% Duty Cycle 22A
  • TIG: 40% Duty Cycle 17A
  • TIG: 60% Duty Cycle 13A
Output Range
  • 120V:
  • TIG: 10-125A
  • Stick: 10-90A

  • 230V:
  • TIG: 10-200A
  • Stick: 10-170A
Dimensions (H x W x D) 14 in x 10.75 in x 19.25 in (358 mm x 282 mm x 502 mm)
Net Weight 46.50 (21.09 kg)

CONTROLS

1. LCD Display
2. Indicator Lights
3. Control Dial
4. On/Off Switch
5. Negative Output Receptacle
6. Advanced Feature Button
7. Weld Process Button
8. Positive Output Receptacle
9. 6-pin Remote Receptacle
