Versatility
Multiprocess Capabilities of MIG, Stick, DC Lift Arc TIG and DC Pulsed TIG

Easy-to-understand interface
4.3-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time

TIG Kit
Kits comes complete with everything needed to TIG weld with the Multimatic 235. Includes 25-foot (7.6 m) Weldcraft™ A-150 TIG torch, RFCS-14 HD foot control, 10-pin to 14-pin adapter cord, flow gauge regulator with 5-foot (1.5 m) gas hose, and AK3C torch accessory kit.

EZ-Latch™ Dual Cylinder Rack with Elevated Gun and Cable Rack
Quickly disconnects from the machine and enables portability. Dual cylinder rack and storage compartment. Allows operator to easily store two gas cylinders. Includes elevated gun and cable rack to keep cables off the floor and tangle free.

Gun-On-Demand™
Millers Gun-On-Demand™ allows operators to simply pull the trigger on MIG gun or Spoolgun. Automatically detects and recalls the voltage, wire feed speed of the active gun.


  •
    Power source with 10 ft. (3 m) industrial power cord
  • 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/Bernard® AccuLock™ MDX consumables for .030/.035 in. (0.8/0.9 mm) wire
  • 10 ft. (3 m) cable w/electrode holder & 50 mm Dinse-style connector
  • 10 ft. (3 m) work cable w/clamp & 50 mm Dinse-style connector
  • .030/.035 in. (0.8/0.9 mm) reversible drive rolls
  • Material Thickness Gauge
  • EZ-Latch™ dual cylinder running gear with elevated gun and cable rack
  • Multimatic 235/255 TIG kit
  • Two chains to secure gas cylinders
  • 2 Flow gauge regulator and gas hose for argon or AR/CO2 mix

Portability - Machine only weighs 63 lb
Weight is reduced to make it easier to take the welder to where the work is, plus the added convenience of one machine versus two or more.

Auto-Set™ Technology
Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.

Generator Compatible
Will be able to operate and provide full output when powered by an engine-driven welder with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer. Limited output will occur when used with smaller generators.

MDX-250 MIG Gun w/ AccuLock™ MDX consumables
AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ MDX contact tips provide superior MIG arc performance


Processes

Flux Cored (FCAW)
MIG (GMAW)
Stick (SMAW)
TIG DC (GTAW-DC)
Aluminum Welding

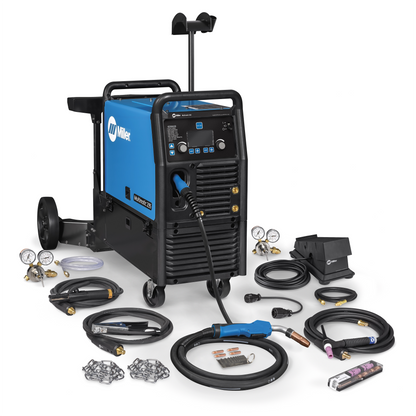

Title Multimatic® 235 Multiprocess Welder w/ EZ-Latch™ Running Gear- 240V
Weldable Metals Steel
Stainless Steel
Aluminum
Input Voltage 220/230/240 V
208 V
Input Phase 1-Phase
Input Hz 50 / 60 Hz
Current Type DC
Max Open Circuit Voltage 54 VDC
Portability Handle(s)
Running Gear / Cart (Standard)
Weld Output CC / CV
Warranty 3 Years
Miller's True Blue Warranty

Multimatic 235 Spec Sheet
Multimatic 235 Spec Sheet
