SKU:951000202
Brand:Miller Electric
Availbility:
In stock

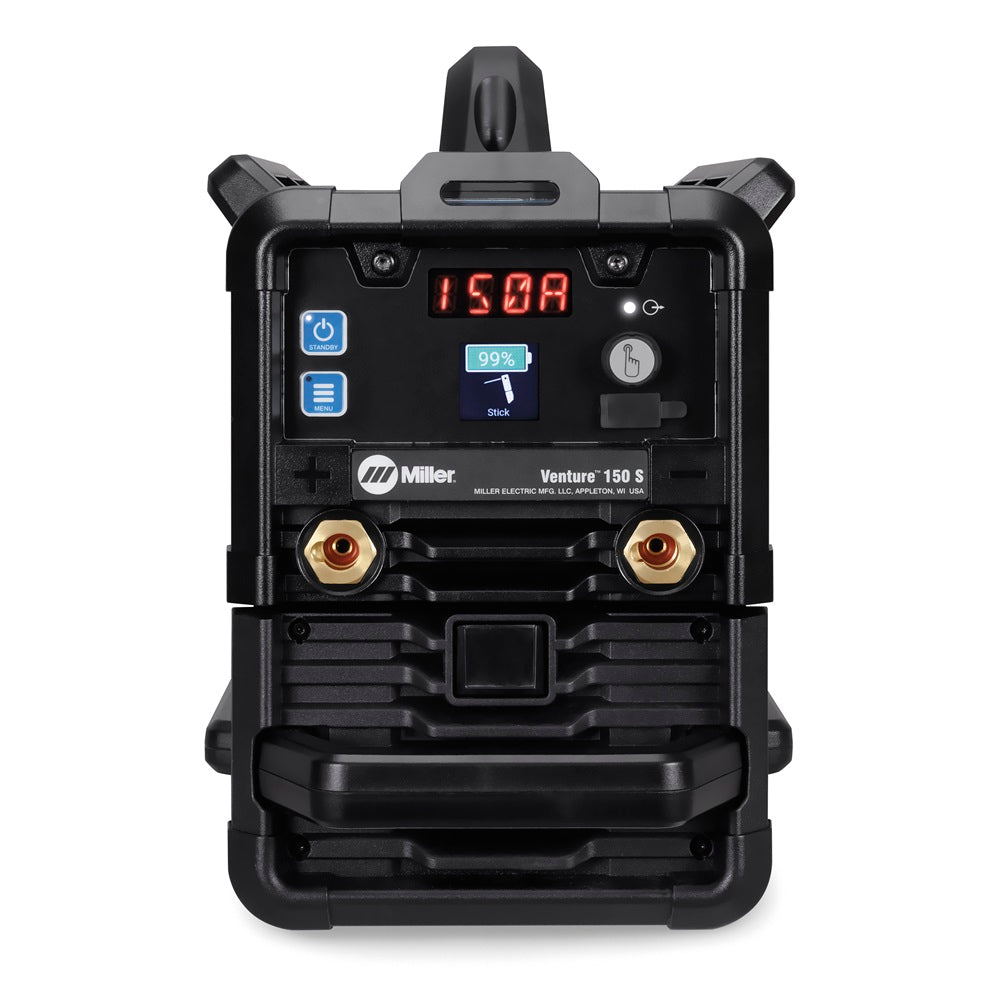

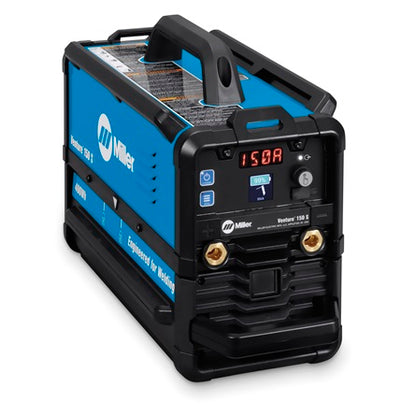

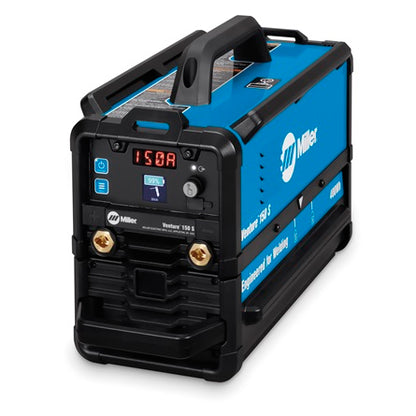

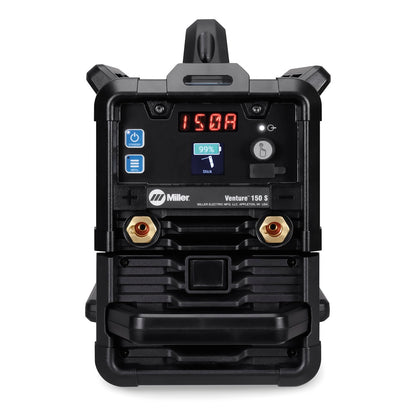

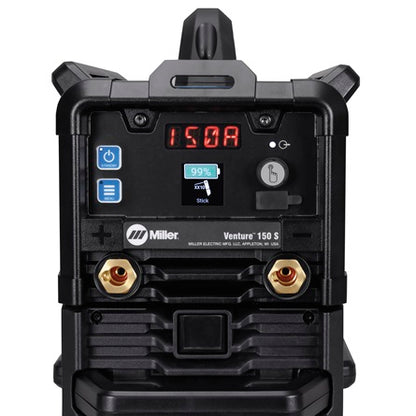

Miller Venture™ 150 S with Battery and Charger Package - 951000202
Save $1,013.27
Package includes the Venture 150 S, 400Wh Battery Pack, and Charger. The Venture 150 S lightweight and compact battery powered Stick/TIG welder with swappable battery packs engineered specifically for welding.
Sale price$3,795.00Regular price
$4,808.27
Free Shipping Over $75
Satisfaction Guaranteed
Secure Checkout
Enhance Your Gear With Accessories
Miller Venture™ 150 S with Battery and Charger Package - 951000202
Sale price$3,795.00Regular price
$4,808.27

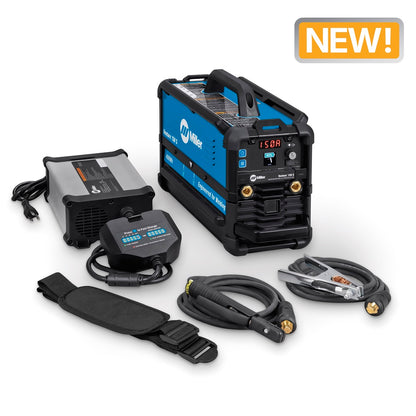

What's Included
Venture 150 S Power Source400 Wh BatteryBattery ChargerShoulder Strap with Pad
8 Rubber Bumpers/Feet10 ft. (3 m) work cable with clamp and 50mm Dinse-style connector10 ft. (3 m) stick electrode holder with 50 mm Dinse-style connector
Save Time
Faster setup and pack-up saves up to 250 hours annually — that’s more time for welding.
Compact Design
Light, convenient and easy to carry between job sites.
Engineered Specifically For Welding
Swappable battery packs so you can weld all day.
Reliable Output
100% duty cycle at maximum output
6010 Stick Electrode Capability
Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
Hot Start™ Technology
Adaptive control provides positive arc starts without sticking.
Lift-Arc™
Provides arc starting that minimizes contamination of the electrode without the use of high frequency.
Created for Versatility
Batteries are lightweight and swappable, so users can weld anywhere
Fan-On-Demand™
Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.
Thermal Overload Protection
Helps prevent machine damage if the duty cycle is exceeded or airflow is blocked. Learn More
Low OCV Stick
A simple design that reduces the open-circuit voltage to 12-16 volts when the welding power source is not in use. Can be enabled or disabled. Some jobs require this.
Stick-Stuck
Detects if the electrode is stuck to the work piece and turns the welding output off to safely and easily remove the electrode.
Not Included
Personal safety equipment (helmet, gloves, etc.)Stick Electrodes
TIG Torch for TIG Welding
General Specifications
| Title | Venture™ 150 S with Battery and Charger Package |
|---|---|
| Applications |
Field Welding Mobile Fabrication & MRO Off-Road Process Pipe Refineries and Power Plants Stainless Steel Tube and Pipe Fabrication |
| Industries |
Aerospace Construction and Fabrication Mining Racing Railcar Shipbuilding Transportation |
| Portability |
Handle(s) Strap |
| Max Open-Circuit Voltage | 80 VDC |
| Battery Charging Options |
Fast: 0-95% in < 30 mins. Standard: 0-95% in < 60 mins. |
| Weldable Metals |
Stainless Steel Steel |
| Current Type |
AC DC |
| Weld Output | CC |
| Amperage Range |
Stick: 20 - 150 A TIG: 10 - 160 A |
| Material Thickness | Steel 0.020 in. (0.5 mm) - 3/16 in. (4.8 mm) |
| Battery Lifespan | Over 1,000 charge cycles under typical use cases and with proper care |
| TIG Arc Time Per Charge |
15.54 minutes at 100A 8.33 minutes at 160A |
| Stick Electrode Consumption Per Charge |
8.021 1/8 in. 7018 at 110A 13.45 3/32 in. 7018 at 80A 14.49 3/32 in. 6010 at 60A 8.14 1/8 in. 6010 at 90A 5.79 1/8 in. 7018 at 150A 5.57 5/32 in. 6010 at 120A |
| Input Voltage - Machine | 57.6 VDC |
| Input Voltage - Charger | 120 V |
| Input Hz | 50/60 Hz |
| Input Phase | 1-Phase |
