SKU:907405
Brand:Miller Electric
Availbility:
In stock

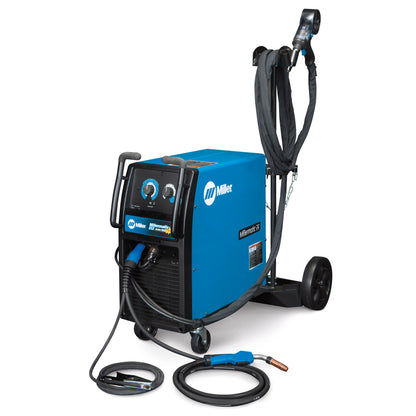

Miller Millermatic 212 Auto-Set MIG Welder
Save $618.00
All-in-one wire welder that welds material from 22 gauge to 3/8 in. thick, in a single pass.
Sale price$2,315.00Regular price
$2,933.00
Free Shipping Over $75
Satisfaction Guaranteed
Secure Checkout
Enhance Your Gear With Accessories
Miller Millermatic 212 Auto-Set MIG Welder
Sale price$2,315.00Regular price
$2,933.00
What's Included
Aluminum Package Includes:
Auto-Set™
A breakthrough control that automatically sets your welder to the proper parameters. Auto-Set makes set up very simple and gives you precise settings instantly.
Compatible with Spoolmate 200 Series Spool Gun!
The Spoolmate 200 saves time for the operator by eliminating the need to go back to the machine to change wirefeed speed.
Manual Mode
Gives you the flexibility to manually set the machine when welding aluminum, stainless steel or anytime you want to set your own parameters on mild steel.
Line Voltage Compensation
Keeps welding output constant even if power input varies by +/- 10%.
Standard Built-In Solid-State Contactor Circuit
Makes wire electrically "cold" until trigger is pulled. This makes unit safer and torch easier to position before starting to weld.
Reduce Maintenance and Operating Costs
Our Fan-On-Demand™ cooling system only operates when needed, reducing power consumption and contaminants drawn into the machine.
EZ-Change™ Low Cylinder Rack
Allows users to easily roll cylinders on and off of rack - no need to lift cylinders.
Larger Work Area
Now with longer 15-ft M-25 MIG gun!
Not Included
Processes
Flux Cored (FCAW)
MIG (GMAW)
General Specifications
| Title | Millermatic® 212 Auto-Set™ MIG Welder |
|---|---|
| Industries Interests |
Racing / Customizing / Restoring DIY / Home Hobbyist Farm and Ranch Metal Art / Sculptures Manufacturing Boat / Yacht |
| Material Thickness |
Mild Steel 22 ga. (0.9 mm) - 3/8 in. (9.5 mm) Aluminum 14 ga. (1.9 mm) - 3/8 in (9.5 mm) |
| Weldable Metals |
Stainless Steel Steel Aluminum |
| Input Voltage |
208 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 60 Hz |
| Input Amperage | 28 A |
| Current Type | DC |
| Rated Output | 160 Amps at 24.5 VDC, 60% duty cycle |
| Max Open Circuit Voltage | 34 VDC |
| Amperage Range | 30 A - 210 A |
| Wire Feed Speed |
1.3 m/min - 17.8 m/min 50 IPM - 700 IPM |
| Wire Diameter |
Solid Steel 0.023 in 0.035 in Solid Steel 0.6 mm 0.9 mm Stainless 0.023 in 0.035 in Stainless 0.6 mm 0.9 mm Flux Cored 0.03 in 0.045 in Flux Cored 0.8 mm 1.2 mm |
| Portability | Running Gear / Cart (Standard) |
| Weld Output | CV |
| Net Width | 19 in |
| Net Height | 30 in |
| Net Length | 40 in |
| Net Weight | 183 lbs |
| Warranty |
3 Years
Miller's True Blue Warranty |
