Description
Features

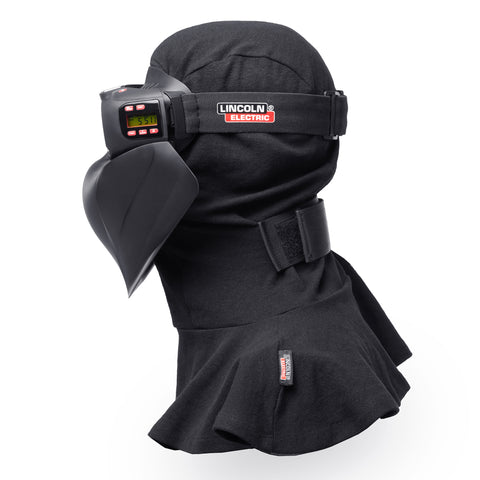

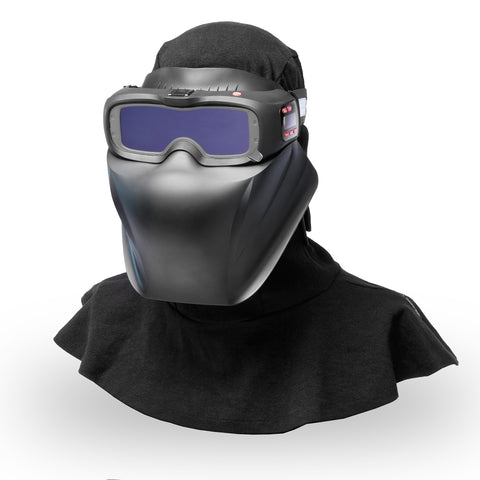

- Compact, Low Profile Design - Excellent for tight clearance environments like fabricating an automotive roll cage, pipeline or pressure vessel
- Industry Leading Optics - 4C® Lens Technology, 1/1/1/1 Optical Clarity and Large 7.3 Sq. In. Continuous Viewing Area
- Excellent Versatility - Wide 5-13 shade range with grind mode for use in welding, plasma cutting and grinding applications
- Professional Fit & Comfort - Ultra lightweight 11.8 oz. design with soft, adjustable head covering and elastic headband
- Portability & Storage - The light, compact design is more portable and easier to store than a welding helmet
- 4C® Lens Technology - Broadens the color range & hues which can be seen in both light and dark states. This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle
- Perfect 1/1/1/1 Optical Clarity - This rating is determined by measuring blurriness, distortion, shade consistency and angle uniformity of the auto-darkening welding lens
- Large Viewing Area - The 7.3 square inch auto darkening lens provides a large field of view to increase versatility and operator control
Versatility, Portability & Comfort
- 5-13 shade range with grind mode for use in welding, plasma cutting and more
- Optional Intelligent LED Light Module illuminates low light environments
- Compact, low profile design allows access to low clearance areas and is also simple to store
- Ultralight 11.8 oz. weight is almost 50% lighter than many welding helmets
- Adjustable cotton balaclava and elastic headband keeps goggles in-place for reliable protection
Specifications
LENS SWITCHING SPEED (SEC) | 1/25,000 |
VARIABLE SHADE/CONTROL | 5-13 Internal |
BATTERY REPLACEMENT TYPE | 1 CR2450 Replaceable Battery |
GRIND MODE SHADE/CONTROL | 3.5 / External & Internal |
LIGHT SENSITIVITY CONTROL | Continuous |
DELAY CONTROL DARK TO LIGHT (SEC) | 0.1 - 1.0 Fully Adjustable |
ARC SENSORS | 4 |
TIG AMP RATING |
|
VIEW SIZE | 7.29 Sq. Inches (47.0 Sq. cm) |
TEMPERATURE RANGE |
|
WARRANTY | 2 Years |
