Description
What's Included

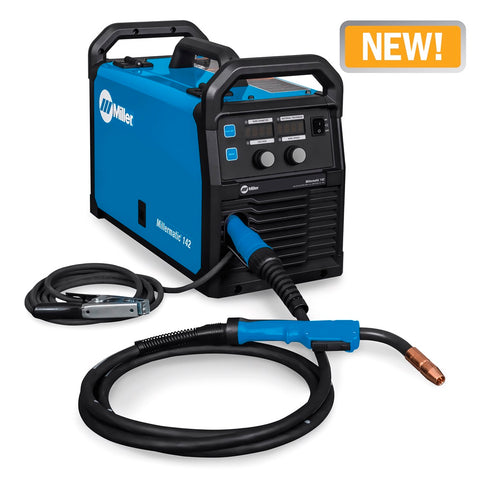

- Millermatic 142
- 10-ft. (3 m) MDX™-100 MIG Welding Gun
- 10-ft. (3 m) work cable with clamp
- 6.5-ft. (2 m) power cord with plug
- Argon and AR/CO2 mix flow gauge regulator with gas hose
- Hobart® spool of .030-in. (0.8 mm) solid wire
- Two contact tips for .030-in. (0.8 mm) wire
- Quick Select drive rolls for .024-in (0.6 mm) or .030/.035-in. (0.8/0.9 mm) solid wire, and .030/.035-in. (0.8/0.9 mm) flux-cored wire
- Material thickness gauge (#229 895)
- Hook-and-loop cord wraps
Auto-Set™
A breakthrough control that automatically sets your welder to the proper parameters. Auto-Set offers all-in-one MIG minus the hassle of finding parameters. Simply set the wire diameter, set the material thickness, and start welding!
Auto Spool Gun Detect™
Automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.

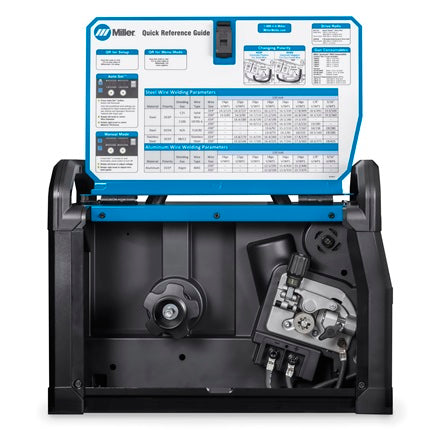

Quick Select™ Drive Roll
Makes setup quicker by offering three grooves - two for different size solid wire and a third for flux-cored wire.

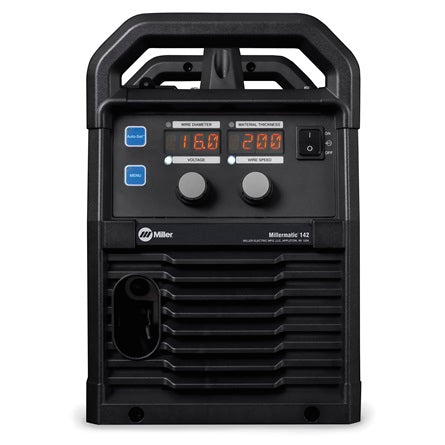

Segmented Display
Easy to read display gives you the flexibility to set the machine precisely and accurately in Manual and Auto-Set modes.
120V Input Power
Uses 120V household input power so there is no special power requirements. Flexible to use in any location!
Generator Compatible
The Millermatic 142 will be able to operate and provide full output when powered by generators with 5,000-watt (5.0K) output or higher, such as a Miller Blue Star 185 (6200 watts) or Fusion 185 (6200 watts) generator. Limited output will occur when used with smaller generators.
Smooth-Start™
This technology provides a smooth, spatter-free start. The best starting machine in the 120V MIG category! No more pop-gun starts or spatter to clean up.
Generator Compatible
The Millermatic 142 will be able to operate and provide full output when powered by generators with 5,000-watt (5.0K) output or higher, such as a Miller Blue Star 185 (6200 watts) or Fusion 185 (6200 watts) generator. Limited output will occur when used with smaller generators.
Specifications
General Specifications
| Title | Millermatic® 142 MIG Welder |
|---|---|
| Industries Interests |
Racing Farm and Ranch Manufacturing Welding Education and Training |
| Amperage | 30 A - 140 A |
| Material Thickness |
Aluminum 18 ga. (1.2 mm) - 14 ga. (1.9 mm) Mild Steel 24 ga. (0.8 mm) - 3/16 in. (4.8 mm) |
| Weldable Metals |
Aluminum Stainless Steel Steel |
| Input Voltage | 110/115/120 V |
| Input Phase | 1-Phase |
| Input Hz | 60 Hz |
| Current Type | DC |
| Rated Output | 100 A at 19 V, 60% duty cycle 80 A at 18 V, 100% duty cycle |
| Max Open Circuit Voltage | 57 VDC |
| Wire Feed Speed |
1.5 m/min - 15.2 m/min 60 IPM - 600 IPM |
| Wire Diameter |
Stainless 0.024 in. - 0.03 in. Stainless 0.6 mm. - 0.8 mm. Solid Steel 0.6 mm. - 0.8 mm. Solid Steel 0.024 in. - 0.03 in. Flux Cored 0.03 in. - 0.035 in. Flux Cored 0.8 mm. - 0.9 mm. |
| Spool Size | 8 in. |
| Portability |
Handle(s) Running Gear / Cart (Optional) |
| Weld Output | CV |
| Applications |
Car Restoration Garage/Shop Metal Art Welding Projects |
