Free Shipping On All Orders (BLACK FRIDAY) - Excluding HI & AK

Features

  • Versatile Performance- Multiprocess unit capable of MIG welding 30-140 amps, DC TIG welding 10-120 amps, and Stick welding 25-90 amps.
  • Easy to use- Simple two knob operation for controlling wire feed speed and voltage. Single button allows for easy process selection changes.
  • Compact Design- Lightweight and portable at 34.5 lbs. Conveniently plugs into household 120V power.

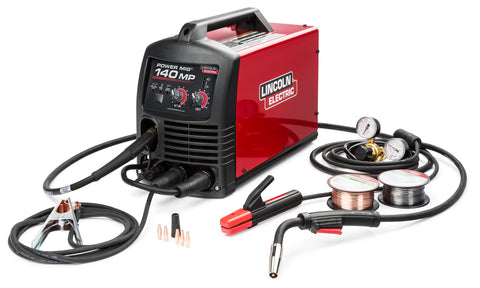

What's Inlcuded

Gun

  • Magnum® PRO 100L gun and 10 ft. (3.0 m) cable assembly with brass connection and 8-pin trigger connector (K530-7).
  • .025 in. (0.6 mm) tapered contact tips (Qty 3)
  • .035 in. (0.9 mm) tapered contact tips (Qty. 3)
  • Gasless nozzle for Innershield® welding
  • Gas nozzle for MIG welding
  • Spindle adapter for 8 in. (203 mm) diameter spools
  • .025 - .035 in. (0.6 - 0.9 mm) wire diameter dual track drive roll for MIG and flux-cored welding (KP2948-1)

Shielding Gas Apparatus

  • Harris® 3000290 Gas Regulator (S25805) and 52 in. (1.3 m) hose (S19303) for use with Ar/ CO2 blend gases. For use with CO2 shielding gas, order a Lincoln Electric S19298 CO2 shielding gas bottle adapter.

Welding Wire

  • Sample spool of .025 in. (0.6 mm) diameter SuperArc® L-56® premium MIG wire
  • Sample) spool of .035 in. (0.9 mm) diameter Innershield® NR®-211-MP fl ux-cored wire

Other

  • Work clamp and 10 ft. (3.0 m) cable
  • Instruction manual
  • Quick Start guide
  • Electrode holder with 10 ft. cable for stick welding
Input Power
  • 115/1/60
Rated Output
  • 95A/18.75V/60%
Input Current
  • 20A
Output Range
  • 30-140A
Solid Wire Size Range
  • .025 - .035 in (0.635 - 0.9 mm)
Cored Wire Size Range
  • .030 - .035 in (0.8 - 0.9 mm)
Wire Feed Speed Range
  • 40-500
Dimensions (H x W x D) 13.6 in x 8.9 in x 18.1 in (345 mm x 224 mm x 460 mm)
Net Weight 35.00 (15.88 kg)
Lincoln PowerMig 140MP Product Information
Product Sheet
