SIMPLE, VERSATILE, RELIABLE

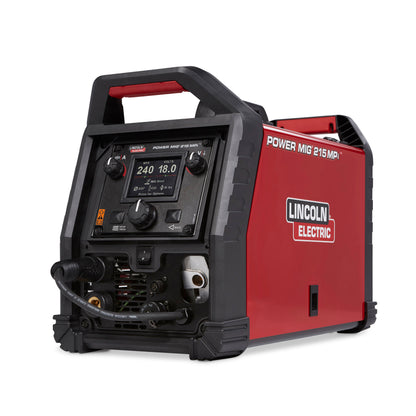

The POWER MIG 215 MPi multi-process welder is a reliable, easy-to-use machine for the general fabricator, small contractor or repair personnel. The sleek and solid ergonomic design with multiple lift points maximizes mobility around the shop, and user-friendly technology makes the setup process and selection of weld settings incredibly simple. Take on any job – MIG, TIG, Stick or Flux-Cored – with the versatile POWER MIG 215 MPi welder.
KEY FEATURES
- Multi-Process Capable - Welds MIG, Flux-Cored, Stick, and DC TIG.
- Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.

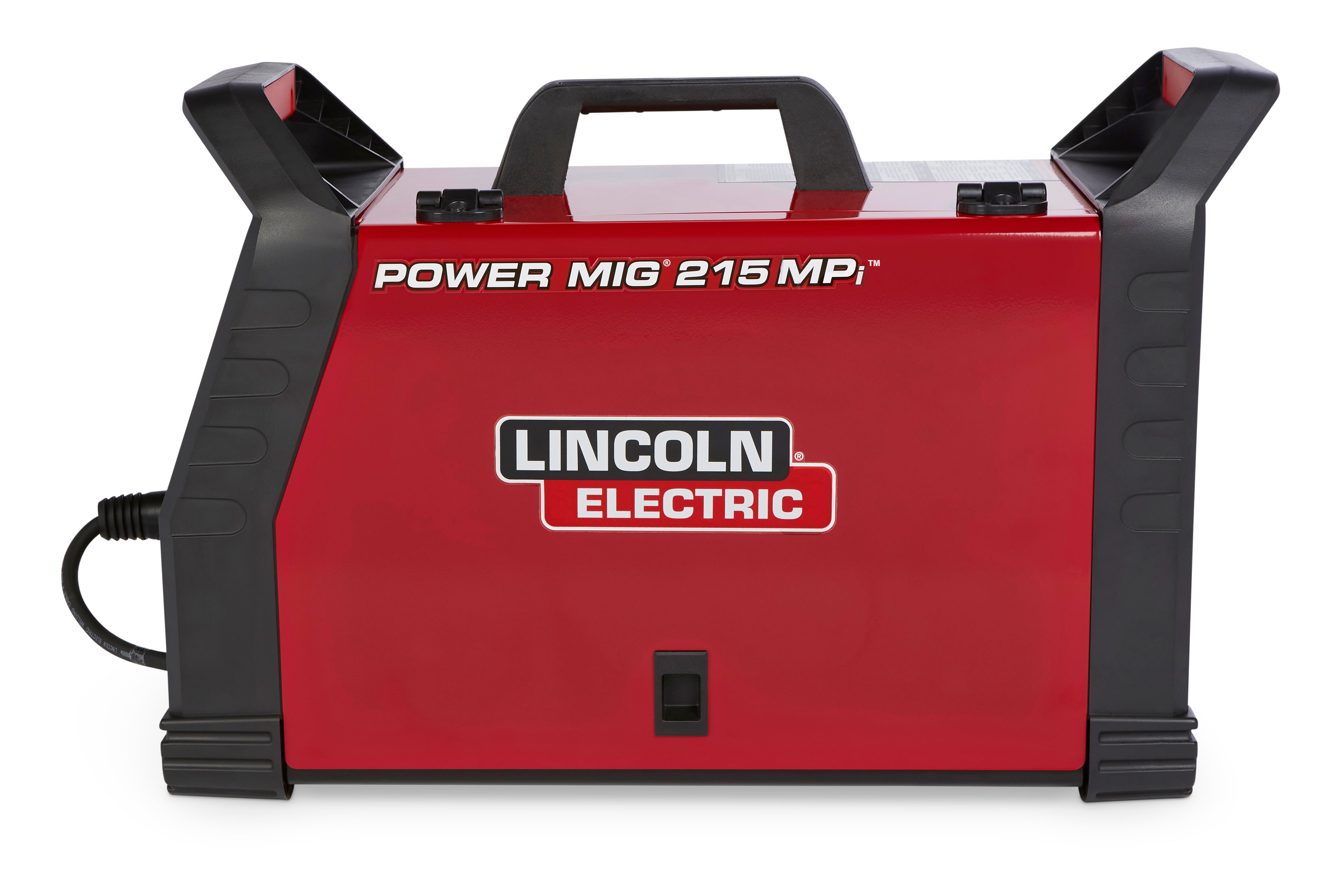

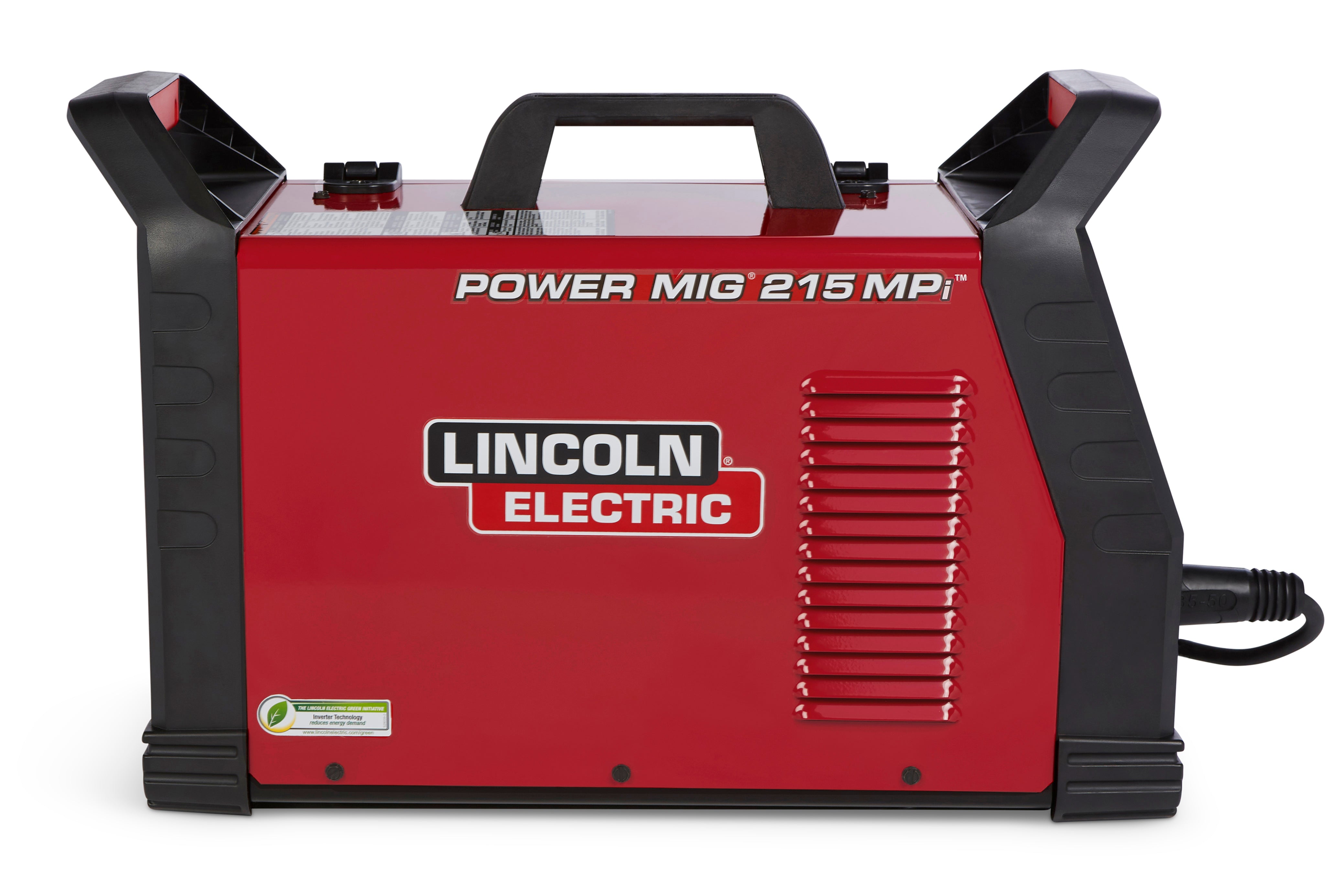

- Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop.
- Built in TIG Solenoid and Foot Pedal Adapter The POWER MIG 215 MPi welder is designed to accept a TIG torch, no install required.

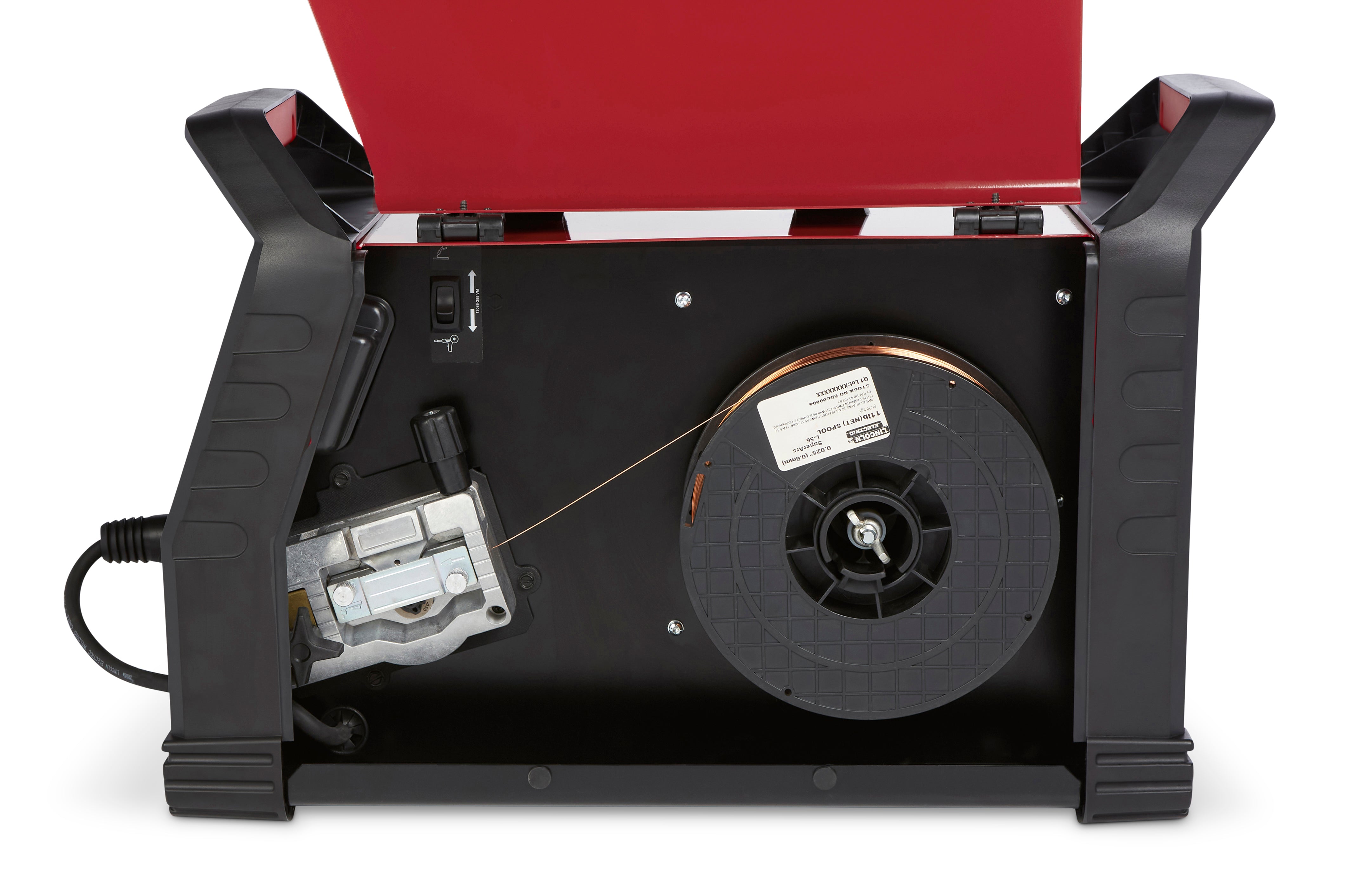

- Robust and Reliable Wire Drive – Ensures proper and consistent feeding for optimal welding experience.

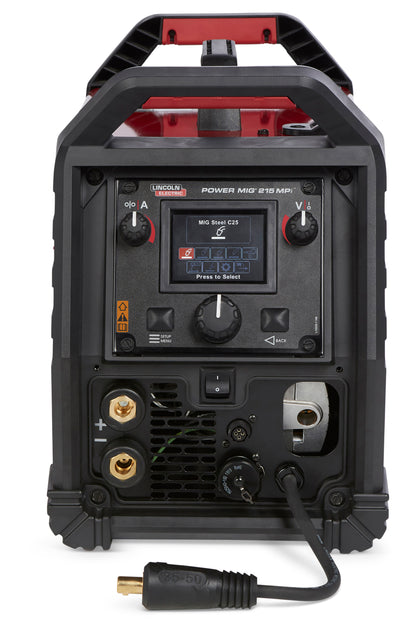

- Ready.Set.Weld® Technology – Simplifies setup by recommending optimal welding parameters for each welding procedure.
- ArcFX® Technology - Provides instant visual feedback on how settings affect the weld outcome.
- Memory Capability - Easily recall saved settings to get welding faster.
- Lightweight and Portable- Only 48 lbs.

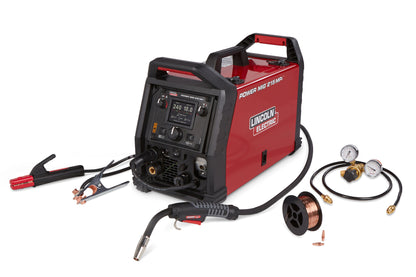

What's Included
- Magnum® PRO 175L Gun 10 ft. (3.0 m) (K4076-1)
- 230V to 120V power cord adapter
- Work Cable and Clamp
- Electrode Holder and Lead Assembly
- Adjustable Gas Regulator and Hose
- Gas and Gasless Nozzles
- Gun Cable Liner (pre-installed in gun)
- Spindle Adapter
- Sample 2 lb (0.91 kg) Spool of SuperArc® L-56® Mild Steel MIG Wire(EDO30631)
- 0.025 in. (0.6 mm) and 0.035 in. (0.9 mm) Contact Tips
- 0.025 - 0.030 in. (0.6 - 0.8 mm) and 0.035 in. (0.9 mm) Drive Rolls
- 0.030 - 0.045 in. (0.8 - 1.1 mm) Knurled Drive Rolls
- 0.025 - 0.035 in. (0.6 - 0.9 mm) and 0.045 in. (1.1 mm) Wire Guides
Machine Inputs & Outputs
Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) | 120/1/60 |
Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) | MIG: 105A/19.25V/40% 80A/18V/100% |
Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) | TIG: 130A/15.2V/40% 100A/14V/100% |
Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) | Stick: 85A/23.4V/40% 60A/22.4V/100% |
Phase 1: Input Current at Max Rated Ouput #1 (Current) | 22A |
Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) | 230/1/60 |
Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) | MIG: 215A/24.8V/30% 120A/20V/100% |
Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) | TIG: 175A/17V/30% 110A/14.4V/100% |
Phase 1: Rated Output #2C (Current/Voltage/Duty Cycle) | Stick: 175A/27V/30% 110A/24.4V/100% |
Phase 1: Input Current at MAX Rated Output #2 (Current) | 29A |
Product Weights & Dimensions
Dimensions (H x W x D) | 15.08 in x 10.88 in x 23.14 in (383 mm x 276 mm x 588 mm) |
Net Weight | 48 lbs (21.8 kg) |
Machines
Machines Processes | Stick (SMAW) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) |
IEC Rating | IP21S |
Max Rating | 220A |
Output Range by Mode | MIG: 20-220A |
Number of Operators per Machine | 1 |
Machines Communication Technology | digital |
Work Lead Connector Type | Dinse |
Welding Gun Cable Assembly Length | Magnum PRO 175L |
Work Cable Length | 10 FT |
Spool Gun Compatible (Duty) | Light |
Wire and TIG Feeders
UI type | TFT - Graphic |
Wire Feeders Processes | MIG Flux Cored |
Contact Tips Included | Yes |
Maximum Wire Thickness | 0.045 in (1.1 mm) |
Minimum Wire Thickness | 0.025 in (0.6 mm) |
Sample MIG Wire Included | Yes |
Basic Specification
Input Voltage | 120/230 |
Input Current | 120V: 15A, 230V: 15.9A |
Input Hertz | 60 |
Input Power | 120/230/1/60 |
Input Phase | 1 |
Mode Icon | CC/CV |
Output Range | 120V: 20-140A DC 230V: 20-220A DC Max. OCV : 56V |
Polarity | DC |
Rated Output | 120V: 105A/19.3/40% 230V: 215A/24.8V/30% |
Application
Typical Application | Automotive Brewery Distillery General Fabrication Maintenance & Repair Repair Welding |
Warranty
Warranty | 3 Years |
