Miller Multimatic 220 AC/DC Multiprocess Welder w/ Wireless Foot Pedal - 907757002

Miller Multimatic 220 AC/DC Multiprocess Welder

SKU:907757002

Brand:Miller Electric

Availbility:

In stock

Miller Multimatic 220 AC/DC Multiprocess Welder w/ Wireless Foot Pedal - 907757002

Name: Miller Multimatic 220 AC/DC Multiprocess Welder w/ Wireless Foot Pedal - 907757002
Brand: Miller Electric
SKU: 907757002
Price: 4425.0 USD
Availability: InStock

STAFF PICK

Save $1,182.46

Gives you the freedom to weld any process including AC/DC TIG, MIG, flux-cored, and stick with one portable, powerful, easy to use machine. Setup and switching processes are fast and easy, all while ensuring excellent arc quality using either 120 or 240 volt power. Welds up to 3/8" (MIG and Stick) or 1/4" (TIG).

$4,425.00 $5,607.46

Product variants

Quantity

Free Shipping Over $150

Satisfaction Guaranteed

Secure Checkout

Buying in Bulk?

Save more when you buy more! Reach us out for more details.

Contact Us

Enhance Your Gear With Accessories

Miller Multimatic 220 AC/DC Multiprocess Welder w/ Wireless Foot Pedal - 907757002

$4,425.00 $5,607.46

Features

All in One

Take on more projects with one machine that has MIG, Stick, AC and DC TIG.

QuickTech™

Automatically determines the polarity. MIG gun and TIG torch can stay connected at the same time. Automatically switches to the right process. Just hit the trigger or the foot control and the machine automatically changes. Automatically recalls the settings from the last process used.

14-Pin Controlled Operator Alternatives

The standard 14-pin connector lets you choose your control for a customized experience, whether it's a foot control, fingertip control, or wireless foot control.

Weighing Only 56 Pounds

The Multimatic® 220 AC/DC can go where the work is, plus the added convenience of one machine versus two or more.

Dependable Arc Starts

Provides High-Frequency, non-contact arc starting to eliminate tungsten and material contamination time after time.

6010 Stick Electrode Capability

Superior Stick arc performance even on the difficult-to-run electrodes like E6010.

Auto-Set™ Technology

Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.

Generator Compatible

Will be able to operate and provide full output when powered by an engine-driven welder with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer. Limited output will occur when used with smaller generators.

Multi-voltage plug (MVP™)

Multi-voltage plug (MVP) allows connection to common 120 or 240 V power receptacles without the use of any tools — simply choose the plug that fits the receptacle and connect to the power cord.

Pro-Set™ Feature

This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.

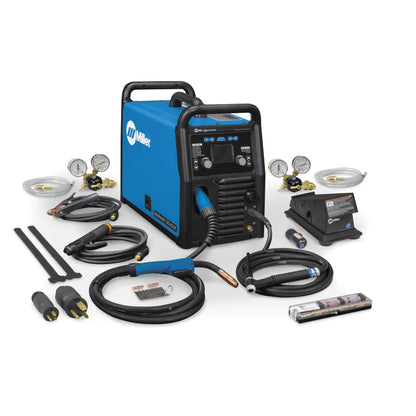

What's Included

•

Multimatic® 220 AC/DC

•

Wireless Foot Control System (301580)

•

6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V

•

10 ft MDX™-100 MIG Welding Gun

•

13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector

•

12.5 ft (3.8 m) Weldcraft™ A-150 (WP-17) TIG torch with 25mm Dinse-style connector

•

10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector

•

Two Argon and AR/CO2 mix regulator/flow gauge with hoses

•

Spool of Hobart® .030 in (0.8 mm) solid wire

•

Two contact tips for .030 in (0.8 mm) wire

•

Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire

•

AK2C TIG torch accessory kit

•

Material thickness gauge #229895

•

Hook-and-loop cord wraps

Processes

Flux Cored (FCAW)

MIG (GMAW)

Pulsed TIG (GTAW-P)

Stick (SMAW)

TIG (GTAW)

TIG AC (GTAW-AC)

TIG DC (GTAW-DC)

General Specifications

Title	Multimatic® 220 AC/DC
Weldable Metals	Aluminum Stainless Steel Steel
Input Voltage	110/115/120 V 220/230/240 V
Input Phase	1-Phase
Input Hz	50 / 60 Hz
Current Type	AC / DC
Max Open Circuit Voltage	45 VDC
Wire Feed Speed	1.5 m/min - 15.2 m/min 60 IPM - 600 IPM
Portability	Handle(s) Running Gear / Cart (Optional)
Weld Output	CC / CV
Net Width	11.25 in
Net Height	17.5 in
Net Length	21.5 in
Net Weight	56 lbs
Warranty	3 Years Miller's True Blue Warranty
