Description

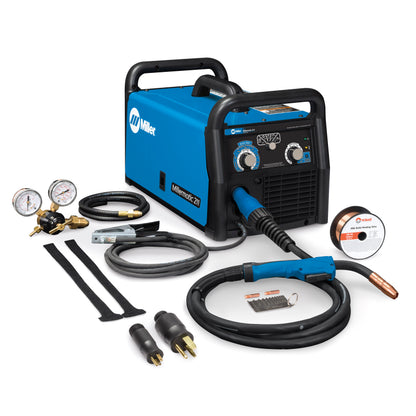

What's Included
Advanced Auto-Set™
Advanced Auto-Set™ now includes five different wire/gas combinations and .024, .030 and .035-inch wires. The easiest welder to use just became more versatile.
Inverter Technology
Inverter technology combines best-in-class arc characteristics with the portability of a 38-pound machine. The arc is extremely forgiving to variations in arc length and travel speeds.
Quick Select™ Drive Roll
Quick Select™ drive roll makes setup quicker by offering three grooves—two for different size solid wire and a third for flux-cored wire.
Auto Spool Gun Detect™
Auto Spool Gun Detect™ automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.
Fan-On-Demand™
Fan-On-Demand™ power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled though the machine.
Multi-voltage plug (MVP™)
Multi-voltage plug (MVP) allows connection to common 120 or 240 V power receptacles without the use of any tools— simply choose the plug that fits the receptacle and connect to the power cord.

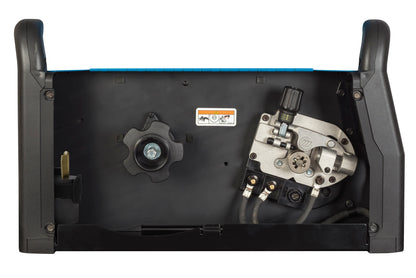

New Drive System
Angled cast-aluminum drive system with calibrated tension knob creates consistent feeding and easy setup for up to 15-foot MIG guns.
Smooth-Start™
Smooth-Start™ provides a smooth, spatter-free start. It’s the best-starting machine in the small MIG machine category.
Specifications
| Title | Millermatic® 211 MIG Welder |
|---|---|
| Industries Interests |
DIY / Home Hobbyist Farm and Ranch Metal Art / Sculptures Racing / Customizing / Restoring |
| Material Thickness |
Mild Steel 24 ga. - 3/8 in. Aluminum 18 ga - 3/8 in. |
| Weldable Metals |
Steel Stainless Steel Aluminum |
| Input Voltage |
110/115/120 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 50 / 60 Hz |
| Current Type | DC |
| Rated Output |
150 A at 21.5 VDC, 40% duty cycle (240V) 115 A at 19.8 VDC, 20% duty cycle (120V) |
| Max Open Circuit Voltage | 54 VDC |
| Amperage Range | 30 A - 230 A |
| Wire Feed Speed |
60 IPM - 600 IPM 1.5 m/min - 15.2 m/min |
| Wire Diameter |
Solid Steel 0.024 in 0.035 in Stainless 0.024 in 0.035 in Flux Cored 0.03 in 0.045 in Solid Steel 0.6 mm 0.9 mm Stainless 0.6 mm 0.9 mm Flux Cored 0.8 mm 1.2 mm |
| Spool Size | 8 in (203 mm) |
| Portability |
Handle(s) Running Gear / Cart (Optional) |
| Weld Output | CV |
| Net Width | 11.25 in |
| Net Height | 12.5 in |
| Net Length | 20.5 in |
| Net Weight | 38 lbs |
| Warranty |
3 Years
Miller's True Blue Warranty |
