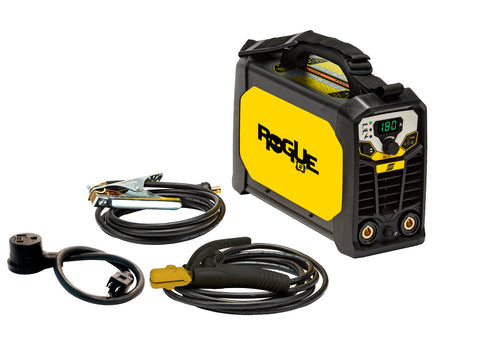

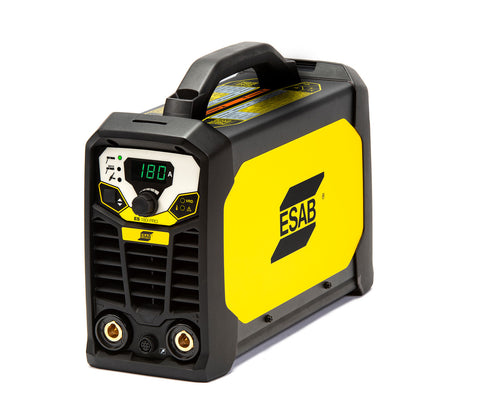

ESAB MiniArc Rogue ES 180i Stick Welder - (0700500070)
The ESAB MiniArc Rogue ES 180i - (0700500070) provides a smooth DC (Direct Current) welding power which allows you to weld a variety of metals, such as alloyed and non alloyed steel, stainless steel, and cast iron. The Arc Force and Hot Start settings are adjustable and help the user find exactly the right arc for the job. Being digital the Micro-processor precisely controls all functions and provides Best-in Class welding performance across the amperage range of the machine. The Rogue ES 180i PRO can be used with electrodes up to 4.0 mm (5/32 in.)
Features
- Dual voltage input supply –flexibility to use any place on single phase plug

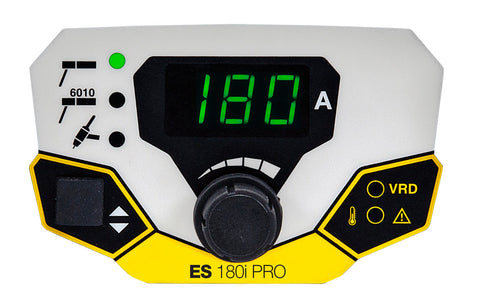

- Superior Arc characteristics –smooth and stable performance (including special mode for stick 6010)
- Generator Compliant –suitable for use with generators. (7kW recommended)
- Easy to Use –set the welding current and weld with excellent results
- Practical Design –makes the power source easy to carry which enables use at almost any work site
- Robust Design –IP23S designed for fabrication shop or site application
- PFC ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 300 feet (12 AWG size)
- Optional analogue remote control (Optional hand remote control MMA4)
- The ESAB Rogue ES 180i is DC TIG capable, however it will not TIG weld aluminum.
The MiniArc Rogue ES 180i can easily perform TIG -welding using a “Live TIG” start. Equip the power source with the optional TIG-Torch, which has a built-in gas valve and a regulator, and a bottle of gas and you are ready to weld mild steel or stainless steel, with or without filler material.
Dimensions
| Dimensions | 403 x 153 x 264 mm (15.8 x 6 x 10.4 in.) |
Weight
| Weight | 8.25 kg (18.2 lb) |
Power Specifications
| Model | ES 130i PRO | ES 180i PRO | ES 130i PRO | ES 130i PRO | ES 180i PRO | ES 180i PRO |
| Conditional Statement | 120VAC, depending on process | 230VAC | 120VAC, depending on process | 230VAC | ||
| Max Output (A) | 130 A | 180 A | ||||
| Energy Save Mode | 50 Watt | 50 Watt | ||||
| Open Circuit Voltage | 78 V | 78 V | ||||
| Protection Class | IP23S | IP23S | ||||
| Current Range(A) | 10-130 A | 10-130 A | 10-140 A | 10-180 A | ||
Welding Output
| Model | ES 130i PRO @ 120 V | ES 130i PRO @ 230 V | ES 180i PRO @ 120 V | ES 180i PRO @ 230 V |
| Stick (SMAW) |
90 A/23.6V @ 25% 58 A/22.3V @ 60% 45 A/21.8V @ 100% |
130 A/25.2V @ 25% 84 A/23.4V @ 60% 65 A/22.6V @ 100% |
110 A/24.4V @ 25% 70 A/22.8V @ 60% 55 A/22.2V @ 100% |
180 A/27.2V @ 25% 116 A/24.6V @ 60% 90 A/23.6V @ 100% |
| TIG (GTAW) |
130 A/15.2V @ 25% 84 A/13.4V @ 60% 65 A/12.6V @ 100% |
130 A/15.2V @ 25% 84 A/13.4V @ 60% 65 A/12.6V @ 100% |
140 A/15.6V @ 25% 90 A/13.6V @ 60% 70 A/12.8V @ 100% |
180 A/17.2V @ 25% 116 A/14.6V @ 60% 90 A/13.6V @ 100% |
Input Voltage
| Frequency | 50/60 Hz |
| Phase | 1 |
| Voltage | 120-230 ±15% VAC |
Specifications
| Operating Temp | -10 to +40 °C (+14 to +104 °F) |
