Description
$500 End User Rebate [CLICK HERE TO CLAIM REBATE]
Featured
- True All-Process - excellent performance on MIG, Flux-Cored, STICK (including 6010 electrodes), DC TIG and AC TIG industrial applications
- Professional TIG features such as High Frequency start in DC and AC modes, balance adjustment, frequency adjustment and Pulse DC.
- sMIG Technology - exclusive sMIG ("smart MIG") feature continuously learns and adapts to the operator’s welding technique to provide a stable arc and superior, repeatable welds; increases productivity for the experienced welder, and reduces training time for novice welders

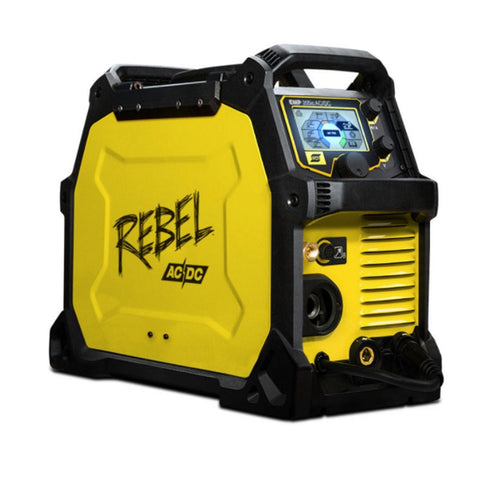

- Unmatched Portability and Durability weighing in at only 49 lbs. (22 kg), Rebel EMP 205ic AC/DC with 5 handle roll cage can tackle any job around the shop or out at the job site
- TFT Multilingual Display - packed full of features, Rebel EMP 205ic AC/DC has 4 programmable memory locations for each process, multi-language selection, trim adjustment, inductance control, pre/post flow control and spot weld setting - giving you the ability to fine tune your welds for the most optimal performance

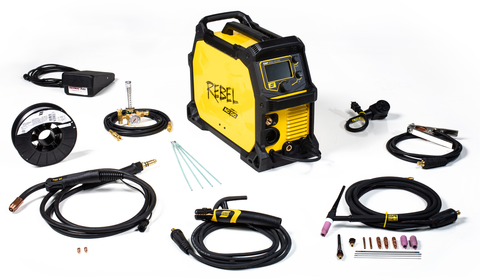

Package Includes:
- Power supply
- Tweco ® Fusion ® 180 Velocity™ MIG gun
- Electrode holder
- Heliarc ® HW-17 TIG Torch outfit with accessory kit & foot control
- 1lb Sample of .035 in. (0.9 mm) wire
- Sample of Atom Arc ® 7018 electrodes
- Victor ® argon flowmeter regulator w/ 12.5 ft. (3.8 m) hose
- Return clamp with leads
- Drive rolls and contact tips
- Operator’s manual
Industries
- Agricultural Equipment
- Automotive Bodies
- Food and Beverage
- Light Fabrication
- Pipe Construction
- Repair and Maintenance
- Training Schools
Welding Process
- SMAW/MMA (Stick)
- GTAW (TIG)
- GMAW (MIG/MAG)
- FCAW (Flux Core)
Specifications
Dimensions
Lead Length
Length | 1.8 m (6 ft) |
Height | 16 in. (406 mm) |
Length | 23 in. (584 mm) |
Width | 9 in. (229 mm) |
Input Voltage
Frequency | TIG Range - 25-400 Hz |
Frequency | 50/60 Hz |
Phase | 1 |
Voltage | 120/230 ± 10% VAC |
Power Specifications
Current Range(A) | 5-235 A |
Efficiency at Maximum Current | 83 % |
Open Circuit Voltage | 68 V |
Power Factor at Maximum Current | 0.98 |
Protection Class | IP23 |
MIG (GMAW/FCAW)
Max Output (A) | 235 A |
Max Output (V) | 26.0 V |
Voltage Range (V) | 12-26 V |
STICK (SMAW)
Max Output (A) | 180 A |
Max Output (V) | 27.0 V |
TIG AC/DC (GTAW)
AC Balance | 1-99 % |
Max Output (A) | 205 A |
Max Output (V) | 18.2 V |
Specifications
Standards | CSA |
Pulsed TIG (DC Only)
Pulse DC | 1-500 sec |
Weight
Weight | 22 kg (49 lb) |
Welding Output
Duty Cycle | 25 % |
Output Current | 205 A |
Output Voltage | 24.25 V |
Welding Process | MIG (GMAW/FCAW) |
Duty Cycle | 40 % |
Output Current | 150 A |
Output Voltage | 21.5 V |
Welding Process | MIG (GMAW/FCAW) |
Duty Cycle | 60 % |
Output Current | 125 A |
Output Voltage | 20.25 V |
Welding Process | MIG (GMAW/FCAW) |
Duty Cycle | 100 % |
Output Current | 110 A |
Output Voltage | 19.5 V |
Welding Process | MIG (GMAW/FCAW) |
Duty Cycle | 25 % |
Output Current | 170 A |
Output Voltage | 27.2 V |
Welding Process | STICK (SMAW) |
Duty Cycle | 60 % |
Output Current | 125 A |
Output Voltage | 25 V |
Welding Process | STICK (SMAW) |
Duty Cycle | 100 % |
Output Current | 100 A |
Output Voltage | 24 V |
Welding Process | STICK (SMAW) |
Duty Cycle | 25 % |
Output Current | 205 A |
Output Voltage | 18.2 V |
Welding Process | TIG AC/DC (GTAW) |
Duty Cycle | 60 % |
Output Current | 125 A |
Output Voltage | 15 V |
Welding Process | TIG AC/DC (GTAW) |
Duty Cycle | 100 % |
Output Current | 110 A |
Output Voltage | 14.4 V |
Welding Process | TIG AC/DC (GTAW) |
Wire Feeder Specifications
Metal | Mild Steel |
Wire Diameter | 0.055 - 0.035 in. |
Metal | Stainless Steel |
Wire Diameter | 0.030 - 0.035 in. |
Metal | Aluminum |
Wire Diameter | 0.030 - 0.047 in. |
Metal | Flux Cored |
Wire Diameter | 0.030 - 0.045 in. |
