  • SKU: 0558102240
  • Brand: ESAB
  • Availbility: SHIPS in 2-3 Days

ESAB Rebel EMP 215ic Multi Process Welder - (0558102240)

1 review
On Sale
Save $450.00

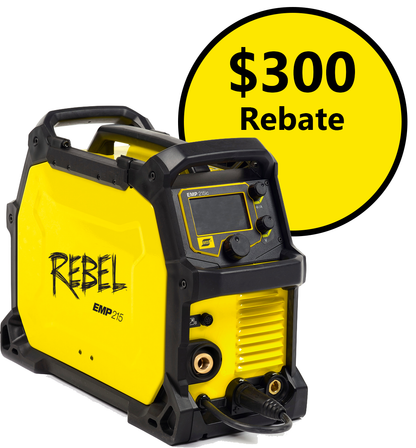

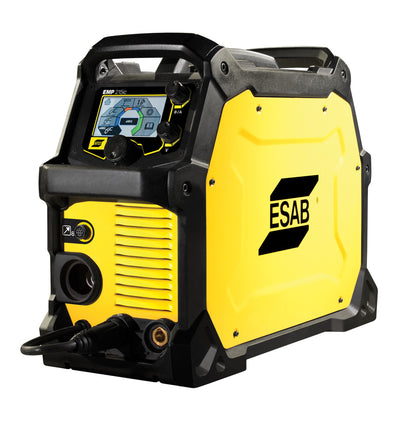

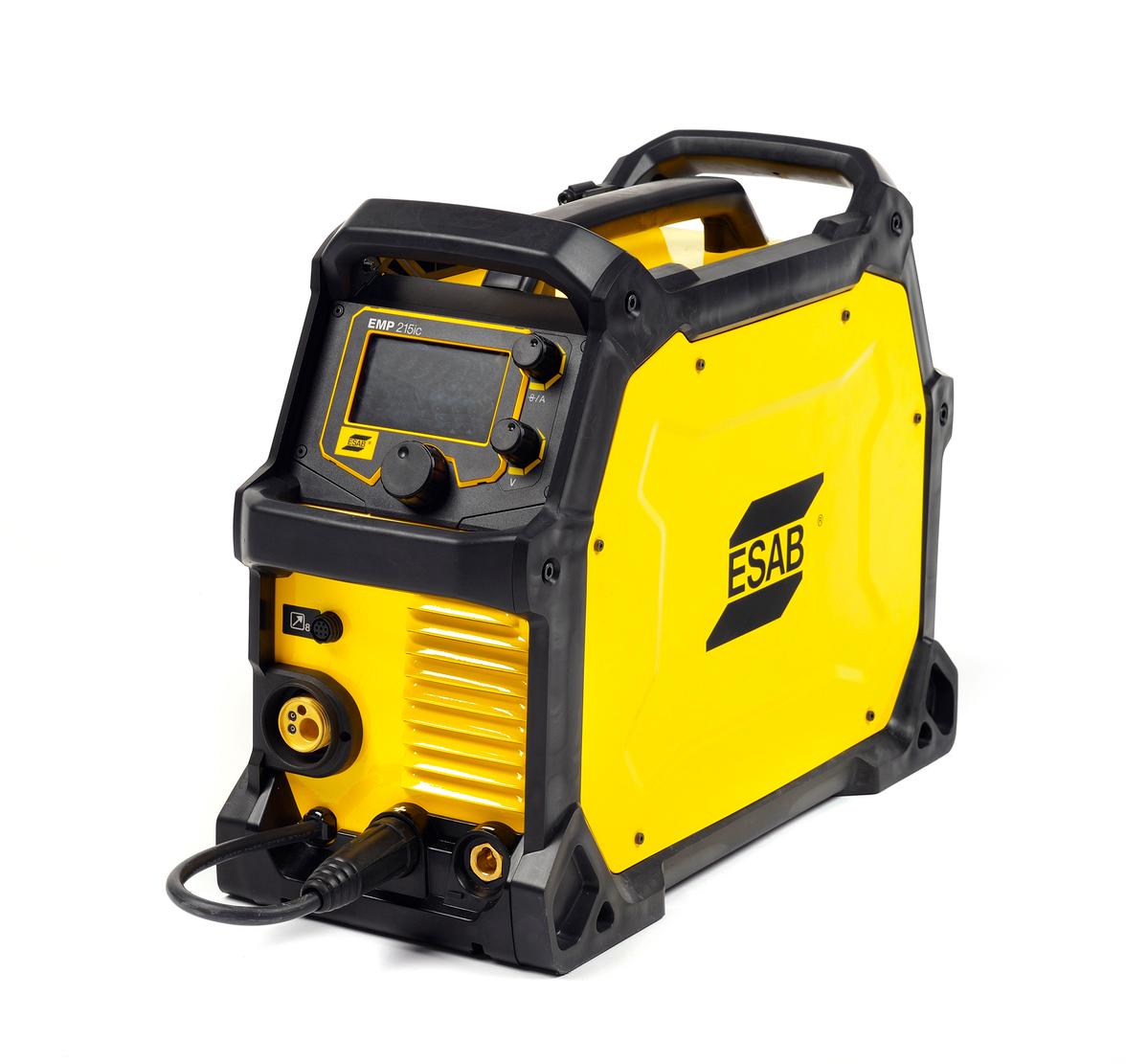

The ESAB Rebel™ EMP 215ic offers 120/230 V flexibility and some of the most innovative welding technology available. A breakthrough design inspired by professional welders, the Rebel EMP 215ic is a complete MIG/TIG/Stick package ready to weld anything – mild steel, aluminum, stainless steel – and go anywhere.

Regular price $2,849.00 Sale price $2,399.00
  • Earn 4798 Reward Points

  • Free Shipping over $75
  • Satisfaction Guaranteed
  • Secure Checkout
  • Description
  • Specs
  • DOCUMENTS
  • ACCESSORIES
Description

 ESAB Rebel EMP 215ic Multi Process Welder - (0558102240)

Features

  • True multi-process performance for best-in-class MIG, Flux-Cored, Stick, including 6010 Stick electrodes, and Lift TIG welding with Rebel EMP 215ic
  • Exclusive sMIG ("smart MIG") feature continuously learns and adapts to the operator’s welding technique to provide a stable arc and superior, repeatable welds; increases productivity for the experienced welder, and reduces training time for novice welders
  • Innovative display has larger display screen and higher pixel density to provide a more clear view of the TFT screen than other light industrial welders; loaded with exclusive features: on-demand availability of the user’s manual, listing of spare parts – all in multiple languages
  • Unique, five-handle roll cage industrial design and unibody steel construction in a lightweight, highly portable unit; 3-year handle-to-handle warranty

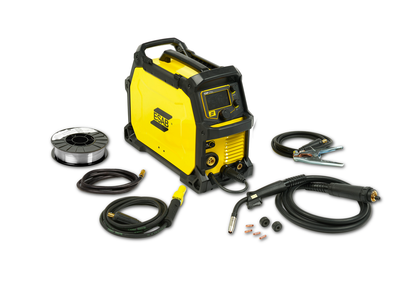

  • Rebel Series models come ready to weld out of the box with Professional Grade TWECO accessories and Victor gas regulator. Shielding gas not included.




Industries

  • Automotive
  • Automotive Bodies
  • Civil Construction
  • Agricultural Equipment
  • HVAC
  • Light Fabrication
  • Repair and Maintenance

Welding Process

  • SMAW/MMA (Stick)
  • GTAW (TIG)
  • GMAW (MIG/MAG)
  • FCAW (Flux Core)

ESAB Rebel EMP 215ic Multi Process Welder - (0558102240)

Specifications

Arc Gun Consumables

Max Plate Thickness

Use With Welding Material 9.5 mm (3/8 in.)

Arc Holders Clamps & Misc

Cable 2m (6.5ft)

Dimensions

Height 16 in. (406 mm)
Length 23 in. (584 mm)
Width 9 in. (229 mm)

Input Voltage

Frequency 50/60 Hz
Phase 1
Voltage 120; 208/230 V

Power Specifications

MIG Welding

Voltage Range (V) 10-26 V
Current Range(A) 5 – 150 A (120 V), 5 – 240 A (230 V) A
Max Output (A) 240 A
Max Output (V) 26 V
Open Circuit Voltage 68 VDC
Protection Class IP23S
Supply Plug 230 V, NEMA 6-50P
Voltage Range (V) 90-270 V
Voltage Steps Maximum 20
Voltage Steps Minimum 10

Specifications

Standards CSA E60974-1-00, IEC 60974-1

Weight

Weight 18.2 kg (40 lb)

Welding Output

Model Duty Cycle Output Current Output Voltage Welding Process
120 V 40 % 90 A 23.6 V Stick (SMAW)
120 V 40 % 130 A 15.2 V TIG (GTAW)
120 V 20 % 130 A 20.5 V MIG (GMAW)
230 V 25 % 180 A 27.2 V Stick (SMAW)
230 V 30 % 180 A 17.2 V TIG (GTAW)
230 V 25 % 205 A 24.3 V MIG (GMAW)

Wire Feeder Specifications

Max Spool Diameter 4, 8, 12 in. (100, 200, 300 mm)
Wire Feed Speed 1.5-12.1 m/min (59-476 in./min)
Metal Mild Steel
Wire Diameter .023-.035 in. (0.6-0.9 mm)
Metal Stainless Steel
Wire Diameter .030-.035 in. (0.8-0.9 mm)
Metal Aluminum
Wire Diameter .030-.045 in. (0.8-1.2 mm)
Metal Flux Cored
Wire Diameter .030-.045 in. (0.8-1.2 mm)
ESAB Rebel EMP 215ic Multi Process Welder - (0558102240)

Documents

User Manual

Rebel EMP 215ic Fact Sheet

ESAB Rebel EMP 215ic Multi Process Welder - (0558102240)


Accessories
