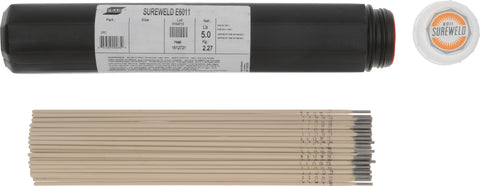

Sureweld 6011 is an all-position, cellulosic type electrode designed for AC. It produces an easily controlled forceful arc with deep penetration and a high quality weld metal which will pass specification requirements for radiography. Sureweld 6011 is used primarily for welding mild steels such as ASTM A-36, A-283, A-284, A-285, A-515, A516 and ABS hull and boiler steel. Typical applications include welding of buildings, piping, shipbuilding, pressure vessels and tanks. AC-DCEP (Electrode Positive).
Where To Buy
Industries
- Industrial and General Fabrication
- Mobile Equipment
- Ship/Barge Building
Welding Process
Typical Tensile Properties
Condition |
Elongation |
Reduction in Area |
Tensile Strength |
Yield Strength |
As Welded |
22 % |
56 % |
76 ksi |
67 ksi |
Typical Weld Metal Analysis %
P |
Mn |
C |
S |
Si |
0.012 % |
0.36 % |
0.10 % |
0.012 % |
0.15 % |
Classifications: |
AWS A5.1; E6011 |
Coating Type: |
High cellulose |
CTOD-Tested: |
False |
Welding Current: |
AC or DC+ |
