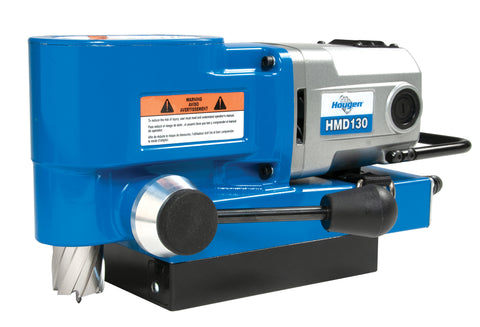

Ultra Low Profile lightweight right angle
drill with large capacity.
Features
• Lightweight at only 23.8 lbs (10.8kg)
• Patented quill feed arbor for smooth cuts
and minimal maintenance
• Uses RotaLoc Plus™ annular cutters
which requires no tools for installation or removal
• Pilot light
• Positive slug ejection
• High torque gearing
• Lift detector safety system
• Feed handle switches easily from side to side
• Ratchet can be used in place of feed handle
• Rear mounted controls
• Carrying handle
• Carrying Case included
• Two year warranty
| HMD130 SPECIFICATIONS | |||
| Electrical System | 115V, 50/60 Hz - 9A, 1035W 230V, 50/60 Hz - 4.5A, 1035W |
||
| Motor | 8A (120V), 4A (240V) 450 RPM | ||
| Diameter | 7/16"- 1-3/8" (12mm - 35mm) | ||
| Depth | 1" (25mm) | ||
| Cutter/Mount | RotaLoc Plus™ Cutters with push & turn style shank |
||
| Dimensions | 6-11/16" H x 6-3/4" W x 14-11/16" L (170mm H x 171mm W x 373mm L) |
||
| Magnet | Base | 4" W x 9" L (102mm W x 229mm L) | |
| 1" Plate (25mm) | Dead Lift 2165 lb. (982 kg) |
Drillpoint Breakaway 735 lb. (333 kg) |
|
| 3/8" Plate (9.5mm) | 1200 lb. (544 kg) | 500 lb. (227 kg) | |
| Weight | 23.8 lb. (10.8 kg) • Shipping 31.7 lb (14.4 kg) | ||
| Shipping Dimensions | 19.5 x 17 x 8" (49.5 x 43.1 x 22.9 cm) | ||
