• SKU: 0904102
  • Brand: Hougen
  • Availbility: IN STOCK

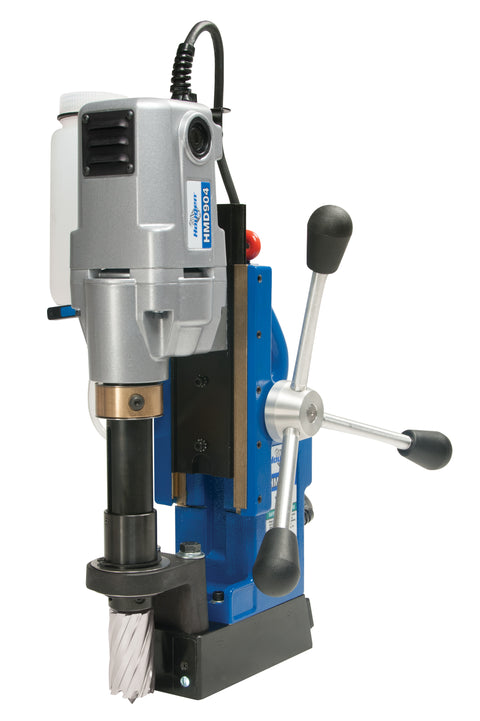

Hougen HMD904 Magnetic Drill w/ Coolant Bottle - 115V - 904102

1 review
On Sale
Save $108.00

The mag drill of choice for fabrication. Lightweight, compact, powerful,

& versatile.

Regular price $1,075.00 Sale price $967.00
  • Earn 1934 Reward Points

  • Free Shipping over $75
  • Satisfaction Guaranteed
  • Secure Checkout
  • Description
  • Specs
Description
The mag drill of choice for fabrication. Lightweight, compact, powerful,
& versatile.


• Large 1-1/2" x 2" capacity
• Pilot light
• Two stage magnet - 30% power increase when
motor is turned on
• Slot Drive arbor for more accuracy and
quicker change out of accessories
• Housing - stronger stiffer, more ergonomic
• Positive slug ejection
• Many accessories are available for a
portable machine shop including: drill
chucks, tapping, countersink, and more...
• Feed handles quickly change from side to side
• Lift detector safety system
• Rear mounted controls
• Gravity feed coolant system Included
• Carrying case included
• Two year warranty

OPTIONAL - Swivel Base adds even greater versatility - Model 904103
• Precisely line up your pilot with the holes
center location
• One stroke lock and unlock handle
• Great for horizontal, overhead, tight areas,
and getting out over another piece of steel
• Patented
Specifications

HMD904 SPECIFICATIONS
Electrical System 115V, 50/60 Hz - 9A, 1035W
230V, 50/60 Hz - 4.5A, 1035W

Motor 8A (115V), 4 (230V), 450 RPM

Diameter 7/16"- 1-1/2" (12mm - 38mm)

Depth 2" (50mm)

Cutter/Mount "12,000-Series" & Copperhead™ Carbide cutters, 3/4" shank

Dimensions 19-5/8" H x 7-3/4" W x 11-5/8" L
(499mm H x 197mm W x 295mm L)

Swivel Area 1-1/8" W x 1-3/8" L
(28.5mm H x 34.9mm W)

Magnet Base 3-1/8" W x 6-9/16" L (79mm W x 167mm L)
1" Plate (25mm) Dead Lift
1750 lb. (794 kg)
Drillpoint Breakaway
995 lb. (452 kg)
3/8" Plate (9.5mm) 1310 lb. (594 kg) 710 lb. (322 kg)

Magnet (Swivel) 1" Plate (25mm) Dead Lift
1340 lb. (608 kg)
Drillpoint Breakaway
For. 695 lb. (315 kg)
Back 835 lb. (379 kg)
3/8" Plate (9.5mm) 1015 lb. (460 kg) For. 503 lb. (228 kg)
Back 605 (274 kg)

Weight 28.9 lb. (13.1 kg) • Shipping 43 lb (19.5 kg)
Weight (Swivel) 31.9 lb. (14.5 kg) • Shipping 45 lb (20.4 kg)

Shipping Dimensions 18 x 20 x 9" (45.72 x 50.8 x 22.9 cm)

Customer Reviews
5.0 Based on 1 Reviews
Write a Review Ask a Question
  • Reviews
  • Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
MN
05/17/2021
michael n.
United States United States
Hougen Mag Drill

Having a Hougen Mag Dril with annular cuttersl is an essential tool. 1/2" holes in 1/2"mild steel less than a minute. Hougen Mag Drill, auto darking welding hood, multiple grinders, and a portable bandsaw are essential tools. Get the work done in a timely manner.
