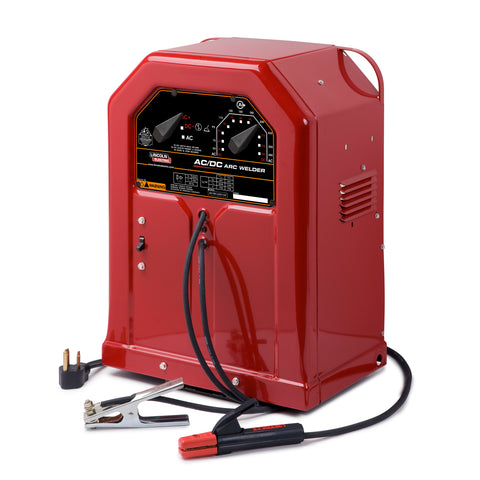

Lincoln AC/DC 225/125 Stick Welder

The AC/DC 225/125 is the same proven design as the renowned AC-225 arc welder, but adds the smoother, more stable DC welding arc. This machine is ideal for farm, shop, and home use where improved arc welding performance is desired.

Regular price $869.00
  • Earn 1738 Reward Points

  • Free Shipping over $75
  • Satisfaction Guaranteed
  • Secure Checkout
  • Description
  • Specs
  • DOCUMENTS
Description

Features

  • Easy to operate - With front mounted AC/DC polarity switch and full range amperage selector switch for accurate and dependable procedure setting.
  • Smooth arc - Makes it easy to weld with different electrodes, including mild steel, low hydrogen, stainless steel and hardfacing electrodes.
  • 125 amp DC output - Enough for most 1/8” (3.2 mm) electrodes.
  • 225 amp AC output - Enough for 3/16” (4.8 mm) diameter general purpose mild steel electrodes and 5/32” (4.0 mm) sizes of other electrodes.
  • NEMA rated, UL listed and CSA approved.
Specifications

Input Power
  • 230/1/60
Rated Output
  • 125A DC/25V/20%
  • 225A AC/25V/20%
Input Current
  • AC:50A
  • DC: 36A
Output Range
  • 30-125A DC
  • 40-225A AC
Dimensions (H x W x D) 24 in x 17.25 in x 12 in (610 mm x 438 mm x 305 mm)
Net Weight 114.00 (51.71 kg)
