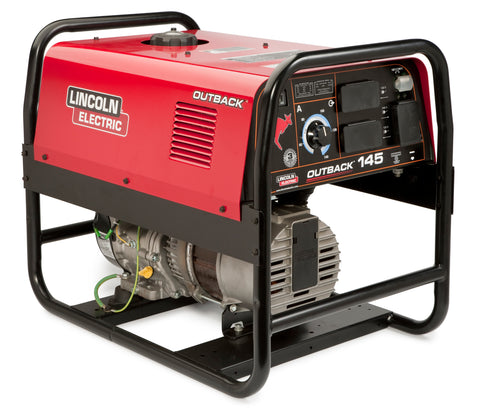

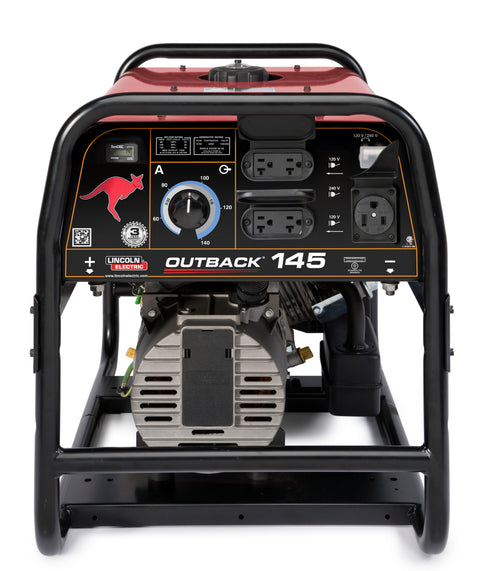

Lincoln Outback 145 Welder/Generator
Lincoln Outback 145 Welder/Generator
  • SKU: K2707-2
  • Brand: Lincoln Electric
  • Availbility: SHIPS in 2-3 Days

Lincoln Outback 145 Welder/Generator

Built For The Outdoors!™

It’s great for service trucks, fence contractors, maintenance crews, farmers, ranchers and anyone who needs portable DC stick welding and AC generator power!

Regular price $3,999.00
  • Earn 7998 Reward Points

  • Free Shipping over $75
  • Satisfaction Guaranteed
  • Secure Checkout
  • Description
  • Specs
  • DOCUMENTS
  • ACCESSORIES
Description

Features

  • Low-Lift™ Grab Bars (Patent Pending)
    • More leverage for lifting unit on and off truck beds.
    • Extra protection against product damage.
    • Best in class feature!
  • 1-1/4 in. (32 mm) Diameter Rugged Tube Frame
    • Great for all-around sturdy protection.
    • Largest diameter tube frame in its class!
    • Best in class feature!
  • 6.8 Gallon (25.7 Liter) Fuel Tank
    • For extended run times, less frequent re-fueling.
    • Large fuel fill opening for easy re-fueling too.
    • Best in class feature!
  • DC Welding with up to 1/8 in. (3.2 mm) Stick Electrode
    • Up to 145 amps of DC output for many applications.
  • 4,750 Watts Peak (4,250 Watts Continuous) AC Generator Power
    • Many uses! Grinder, work lights, pump, motor starting, or emergency power.
    • Plug in a Lincoln POWER MIG® 140C or POWER MIG® 180C for wire welding!

Specifications

Rated Output
  • 100A DC/25V/60%
  • 125A DC/25V/30%
Output Range
  • 50-145A DC
Generator Output
  • 4750 watts peak, 4250 watts continuous
Type of Engine
  • Kohler® CH395
HP and speed
  • 8.9@3600
Cylinders
  • 1
Dimensions (H x W x D) 25.6 in x 21.8 in x 31.5 in (651 mm x 553 mm x 800 mm)
Net Weight 234.00 (106.14 kg)

Documents

Outback 145 Engine Drive
