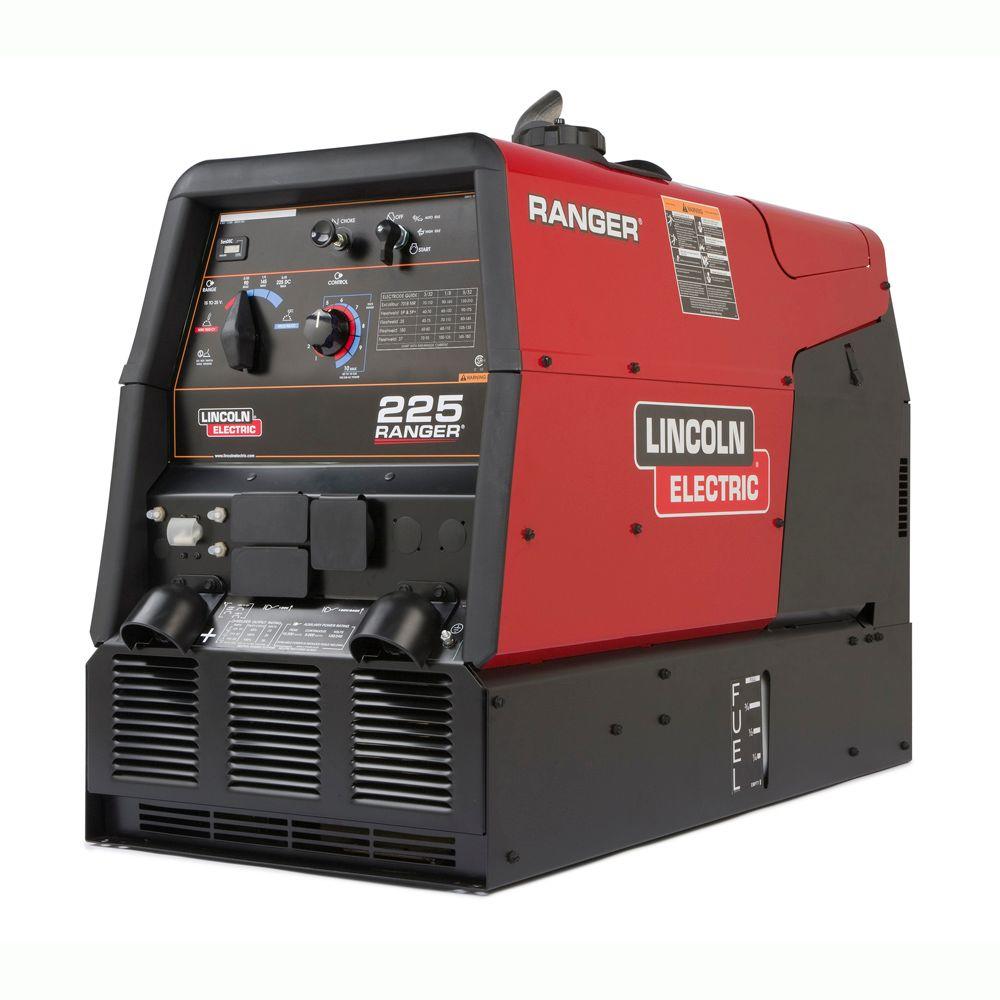

Lincoln Ranger 225 Welder/Generator K2857-1

ARM YOURSELF WITH THE RIGHT WELDER

The Ranger® 225 is a multi-process, engine-driven welder designed for a variety of processes – stick, TIG, MIG or flux cored. Whatever the process or application, arm yourself to get the job done and get it done right the first time.

Regular price $4,299.00
  • Earn 8598 Reward Points

  • Free Shipping over $75
  • Satisfaction Guaranteed
  • Secure Checkout
  • Description
  • Specs
  • DOCUMENTS
  • INSTRUCTIONS
Description

Features

• Totally enclosed case protects the engine and limits noise
• Smooth DC welding output
• 10,500 Watts AC generator power

Totally Enclosed Case
• Engine is fully protected.
• 3 service access doors.
• Low noise – 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.

Versatile DC Welding
• Smooth DC welding output for a broad range of stick electrode types.
• MIG, flux-cored and TIG capable (with optional equipment).

10,500 Watts Peak Single-Phase AC Generator Power

• Peak for motor starting.
• 9,000 watts continuous power for generator, plasma cutter or inverter welder.
• Lights, grinder, power tools.

23 HP Kohler® Gasoline Engine
• 2 cylinder, 4 cycle overhead valve air-cooled design.
• Oil drain extension for easy oil changes.
• 12 gallon tank for extended run times.
• Only 1.5 gallons/hour at 210 amps DC, 25V, 100% duty cycle. Visual fuel level gauge on both sides of unit.

Rugged Reliability
• Welding and AC generator outputs rated at 104ºF (40ºC).

Lincoln Rebate

Specifications

Rated Output
  • 225A DC CC/25V/40%
  • 210A DC CC/25V/100%
  • 200A DC CV/20V/100%
Output Range
  • 50-225A DC
  • 15-25V CV
Generator Output
  • 10500 watts peak, 9000 watts continuous
Type of Engine
  • Kohler OHV Command CH730
HP and speed
  • 23@3600
Cylinders
  • 2
Dimensions (H x W x D) 29.9 in x 21.5 in x 42.3 in (759 mm x 546 mm x 1074 mm)
Net Weight 514.00 (233.15 kg)

Documents
Instuction



1. Engine Hour Meter
2. 4 Position Output Range Selector
3. Circuit Breakers
4. 120 Volt AC Receptacles (NEMA 5-20R)
5. Output Stud Covers
6. Ground Stud
7. 120/240 Volt AC Full KVA Receptacle (NEMA 14-50R)
8. Fine Output Control
9. Engine Choke Control (Stainless Steel Cable)
10. Engine Start Switch with Idler Control
