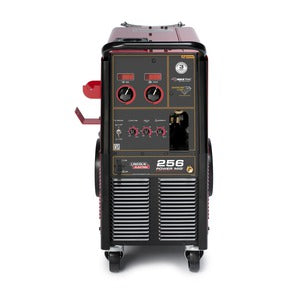

Lincoln Power MIG 256 MIG Welder One-Pak w/ Spool Gun
Lincoln Power MIG 256 MIG Welder One-Pak w/ Spool Gun
Lincoln Power MIG 256 MIG Welder One-Pak w/ Spool Gun
  • SKU: K3069-1
  • Brand: Lincoln Electric

Lincoln Power MIG 256 MIG Welder One-Pak w/ Spool Gun

POWER MIG.® The Professional’s ChoiceSM

The POWER MIG® 256 sets the standard for MIG and flux-cored welding in light industrial job shop fabrication, maintenance or repair work.

Regular price $4,399.00
  • Earn 8798 Reward Points

  • Free Shipping over $75
  • Satisfaction Guaranteed
  • Secure Checkout
  • Description
  • Specs


  • Diamond Core Technology™ – Delivers a forgiving arc, excellent out-of-position arc stability, low spatter and a wide voltage
    sweet spot at a given wire feed speed for steel, stainless steel or aluminum.
  • MAXTRAC® cast aluminum industrial wire drive – Features dual driven rolls, regulated wire feed speed control, brass-to-brass
    connections and Lincoln’s 100% wire supporting split wire guide system.
  • Digital meters - For set up, meters display your preset voltage and wire feed speed. During welding, actual voltage is displayed.
  • New! Magnum® PRO gun and cable 15 ft. (4.5 m) - Makes it easy to reach your work.
  • Copper Plus™ contact tips - Larger tip diameter and mass improves heat dissipation to increase tip life.
  • Add a spool gun – The POWER MIG® 256 is spool gun ready for the premium Magnum® 250LX gun and spool gun capable with the
    Magnum® SG (requires adapter).
  • 115V auxiliary receptacle - (208/230V model only) to power a grinder or other auxiliary equipment in your work area.
  • New! Great value-adding features –

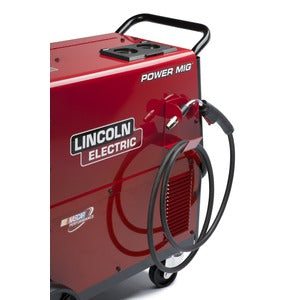

    • Coil Claw™ Cable Management system keeps your workstation organized.
    • Convenient top-mounted gun expendables tray.
    • All metal case front.

NOTE: The POWER MIG® 256 cannot be powered by an engine-driven welder.

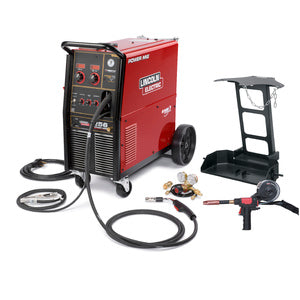

  • POWER MIG® 256 with Magnum® PRO 250L
  • Magnum® 250LX Spool Gun (K2490-1)
  • Dual Cylinder Mounting Kit (K1702-1)
  • Regulator (K586-1)
    Assembly required.

Lincoln Rebate


Input Power
  • 208/230/1/60
Rated Output
  • 250A/26V/40%
Input Current
  • 56/52A
Output Range
  • 30-300A DC
Solid Wire Size Range
  • .025 - 3/64 in. (0.6 - 1.2 mm)
Cored Wire Size Range
  • .035 - .045 in (0.9 - 1.2 mm)
Wire Feed Speed Range
  • 50-700
Dimensions (H x W x D) 31.8 in x 18.9 in x 38.8 in (808 mm x 480 mm x 985 mm)
Net Weight 256.00 (116.12 kg)


Lincoln 256 Spec Sheet
