Lincoln Ranger 330MPX Welder Generator w/GFCI K3459-1
Lincoln Ranger 330MPX Welder Generator w/GFCI K3459-1
Lincoln Ranger 330MPX Welder Generator w/GFCI K3459-1
Lincoln Ranger 330MPX Welder Generator w/GFCI K3459-1
  • SKU: K3459-1
  • Brand: Lincoln Electric
  • Availbility: IN STOCK

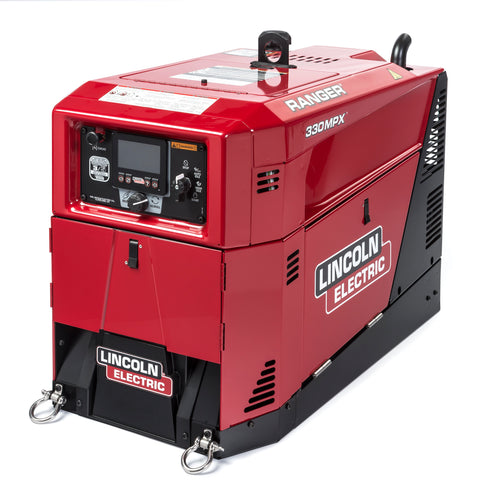

Lincoln Ranger 330MPX Welder Generator w/GFCI K3459-1

The Ranger 330MPX welder and generator leads the way for the construction, maintenance, and service truck industries. The modern design and advanced features allow this machine to streamline welding operations and improve efficiency at the job site. Check out the features below:

Regular price $8,899.00
  • Earn 17798 Reward Points

  • Free Shipping over $75
  • Satisfaction Guaranteed
  • Secure Checkout
  • Description
  • Specs


The Ranger 330MPX has a 20 percent smaller footprint and is 25 percent lighter than other machines in its class. It transports to the field with less bulk and less effort, leaving more room for other tools and accessories needed on your job site.

The Ranger 330MPX’s digital user interface offers a suite of advanced technology that improves weld performance and productivity.

Performance Boosting Technology

  • Quick Setup with Ready.Set.Weld®
  • ArcFX Technology
  • CrossLinc™ Technology
  • The Chopper Technology®

High Quality Operations

  • Clean AC generator with 10 kW of continuous power
  • Plenty of power at 330A/28V for 100% duty cycle to weld ¼ in. 7018 electrode
  • The Magnum PRO 250 LX GT Direct Connect Spool Gun
  • Arc gouging capabilities up to 3/16” carbon electrode

The Ranger 330MPX is up to 60% quieter than other machines in its class to enhance safety and comfort in the workplace.


Rated Output
  • 330A/28V/100%
Output Range
  • NON-IEC Rating:
  • Maximum Output:
  • 330A/28V/100%
  • IEC Rating:
  • DC Stick:
  • 292A/31.7V/100%
  • DC TIG:
  • 330A/23.2V/100%
  • DC Constant Voltage:
  • 312A/ 29.6V 100%
Generator Output
  • 11500 watts peak, 10000 watts continuous
Type of Engine
  • Kohler OHV Command CH740
HP and speed
  • 25@3600
  • 2
Dimensions (H x W x D) 26 in x 20 in x 36 in (660 mm x 508 mm x 914 mm)
Net Weight 446.00 (202.31 kg)


1. Amps
2. Fuel Gauge
3. Weld Mode
4. Home Button
5. Local/Remote Button
6. Output
7. Advanced Weld Feature w/
ArcFX Technology
8. Ready.Set.Weld. Parameters
9. Back Button
10. Help Button

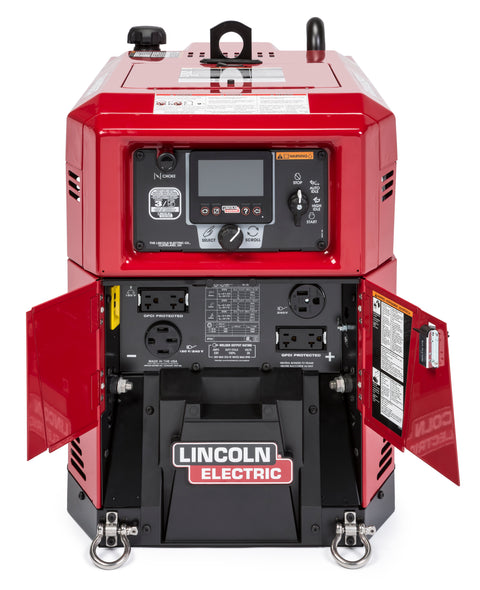

1. Digital User Interface
2. Engine Choke Control
4. 120/240 Volt AC Full KVA Receptacle
5. Output Studs
6. Front battery access for easy maintenance
7. Engine Start Switch
8. Scroll Knob
9. 240 Volt AC Receptacles
10. Ground Stud
11. 120 Volt AC Receptacles
12. Galvanized base and doors to increase the life of the machine and prevent rusting
13. Strain relief shackles for improved life on cables
14. New four hole bolt pattern for easy installation
15. 6pin connector for easy to connect remote control operations, or foot or hand amptrol
16. Circuit Breakers
17. 7 pin connector for the first in class direct connect spool gun
