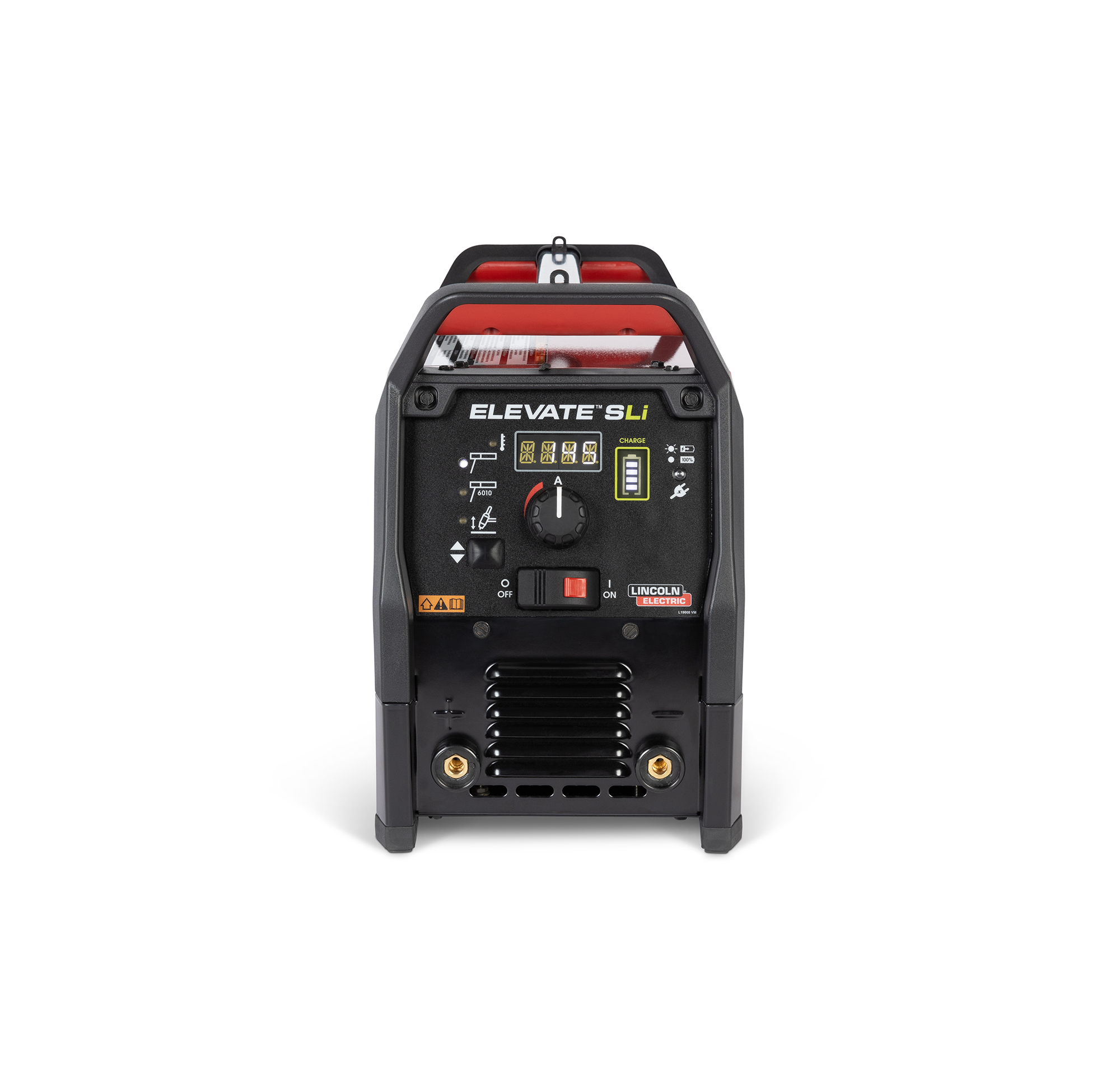

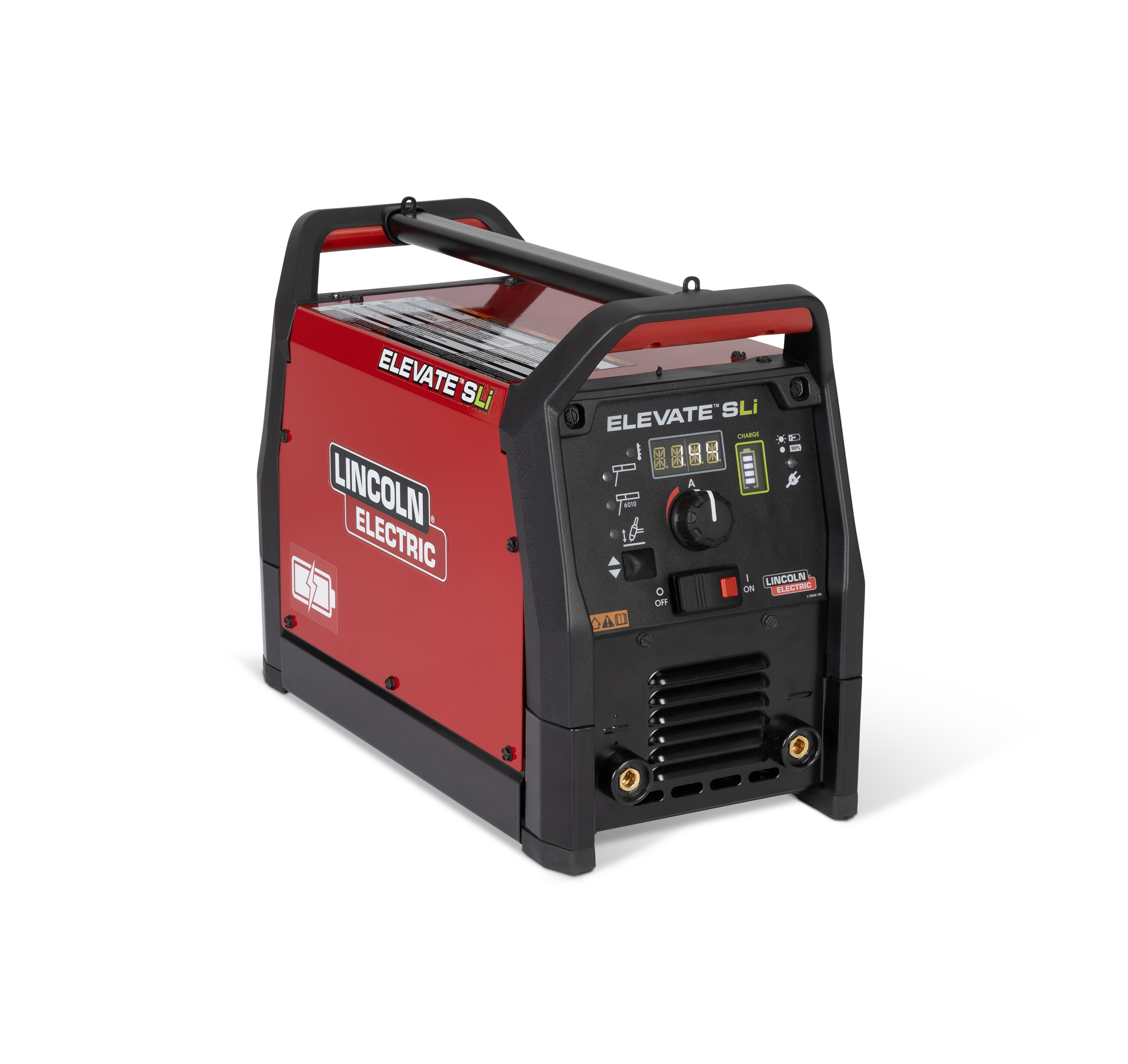

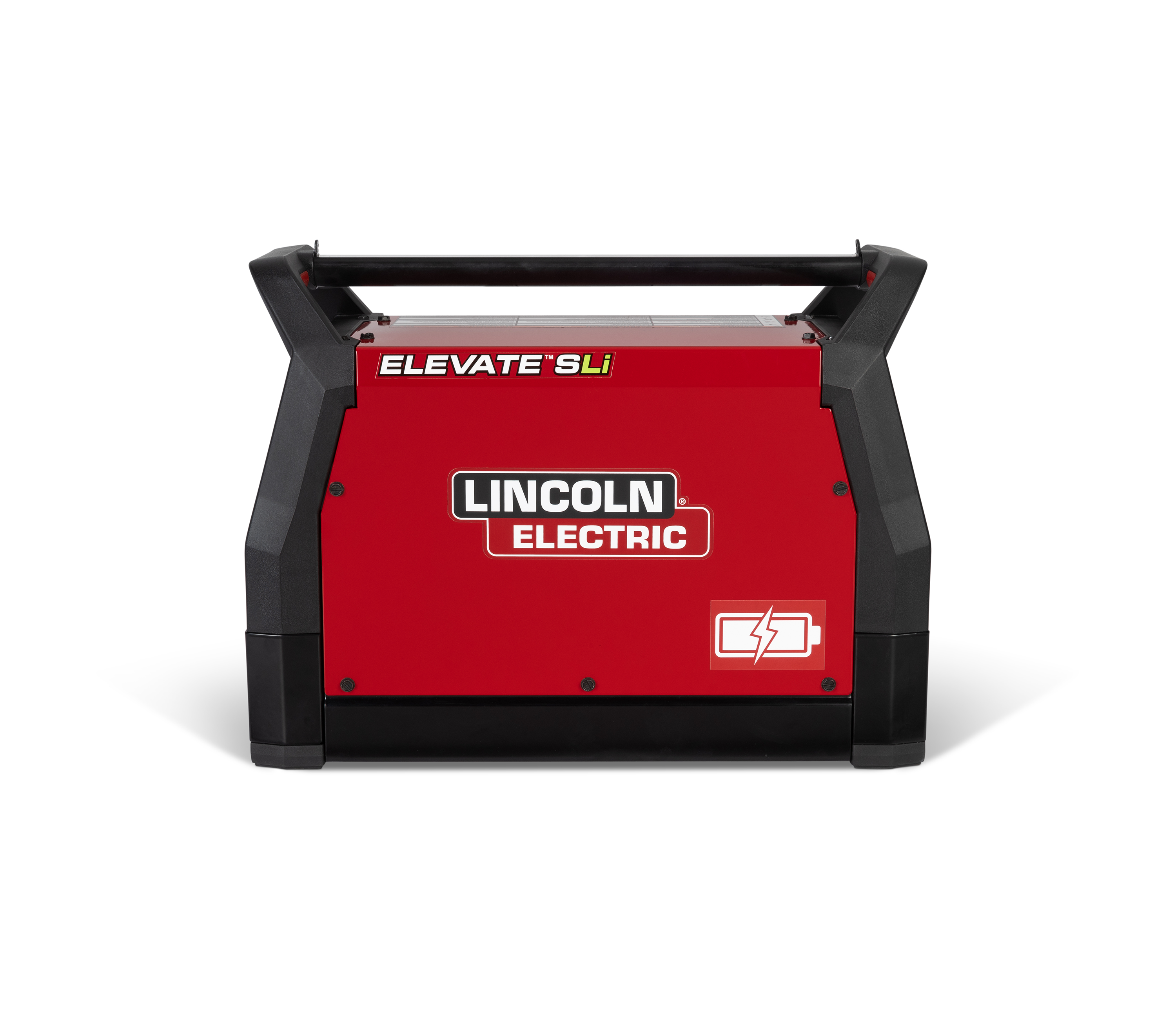

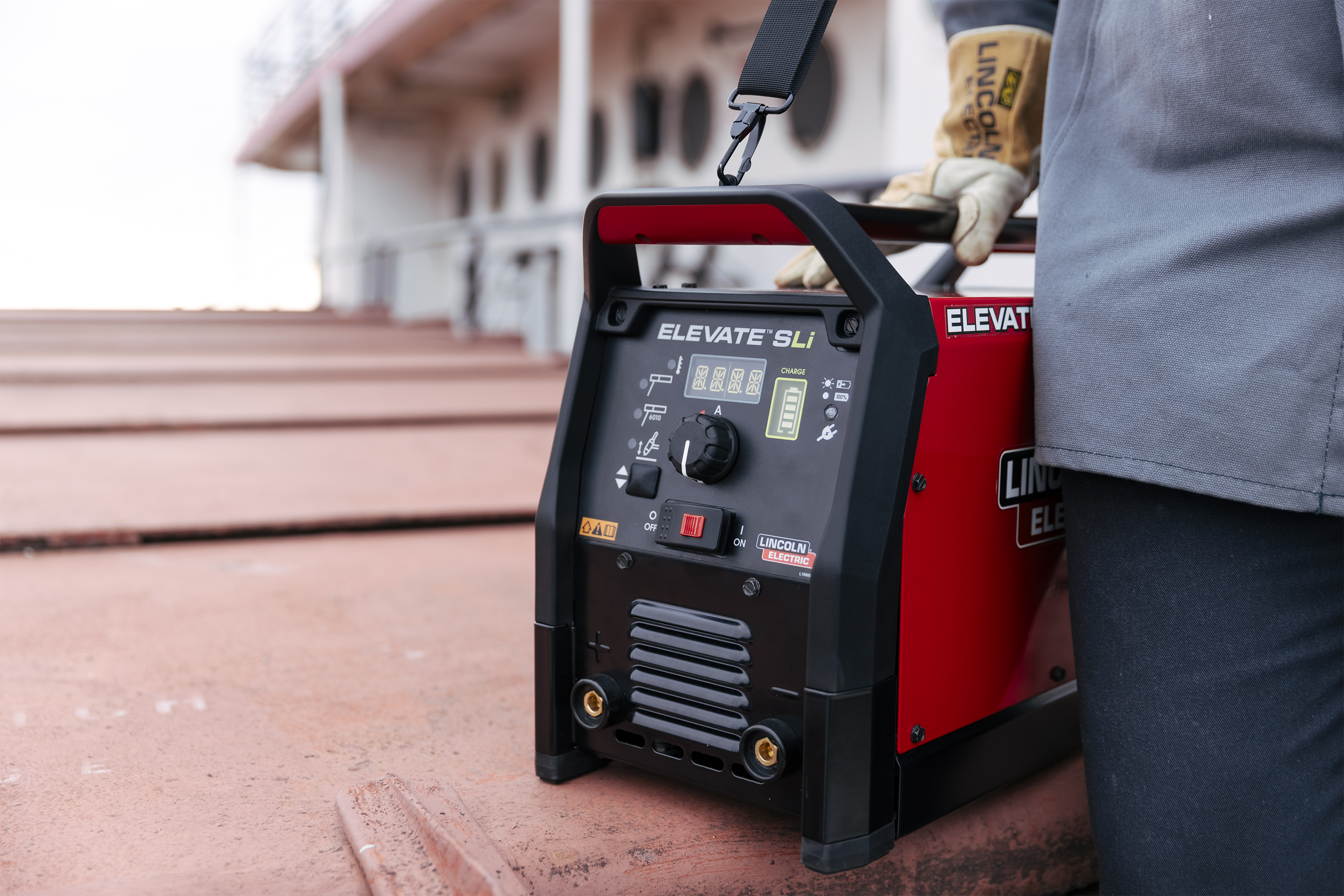

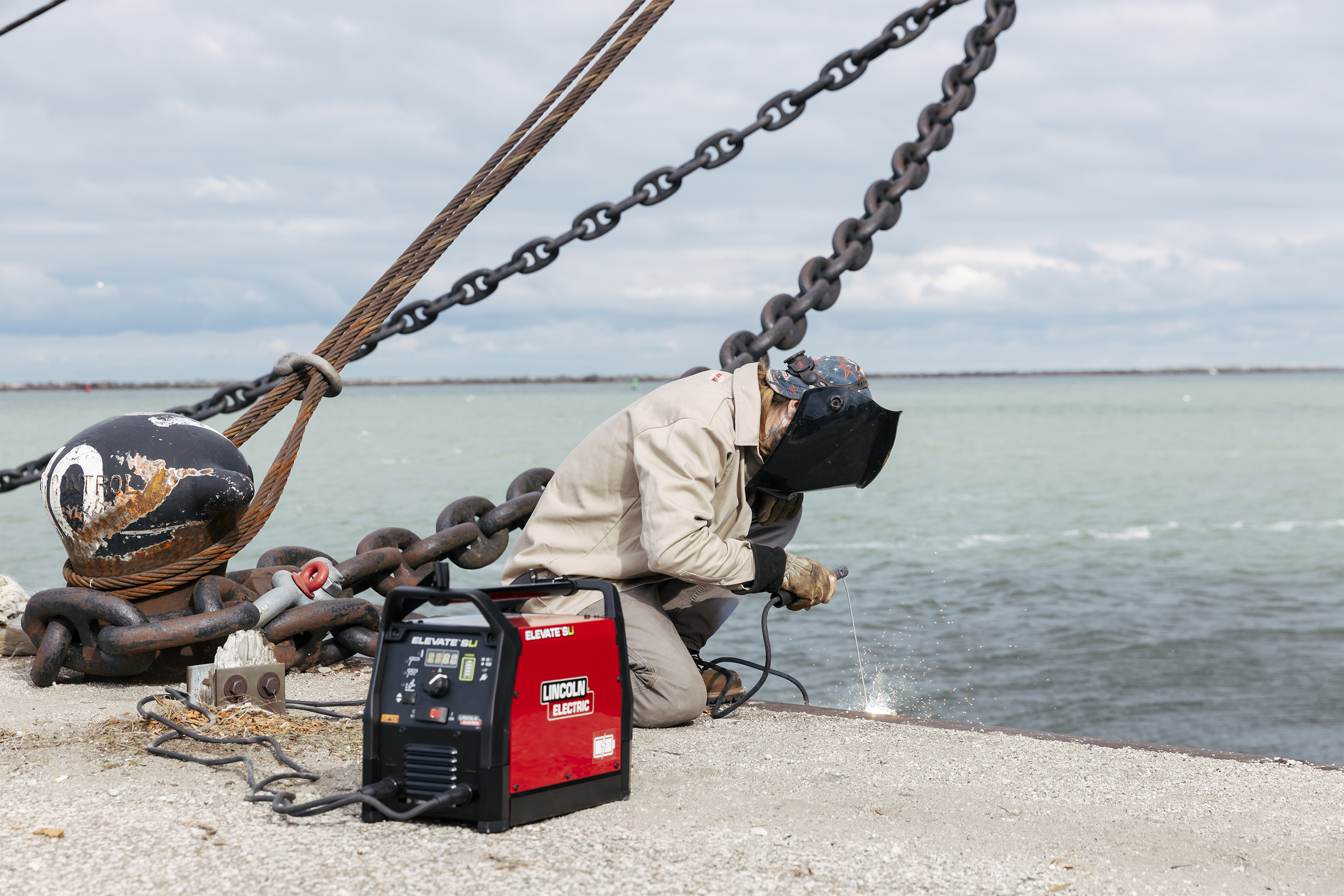

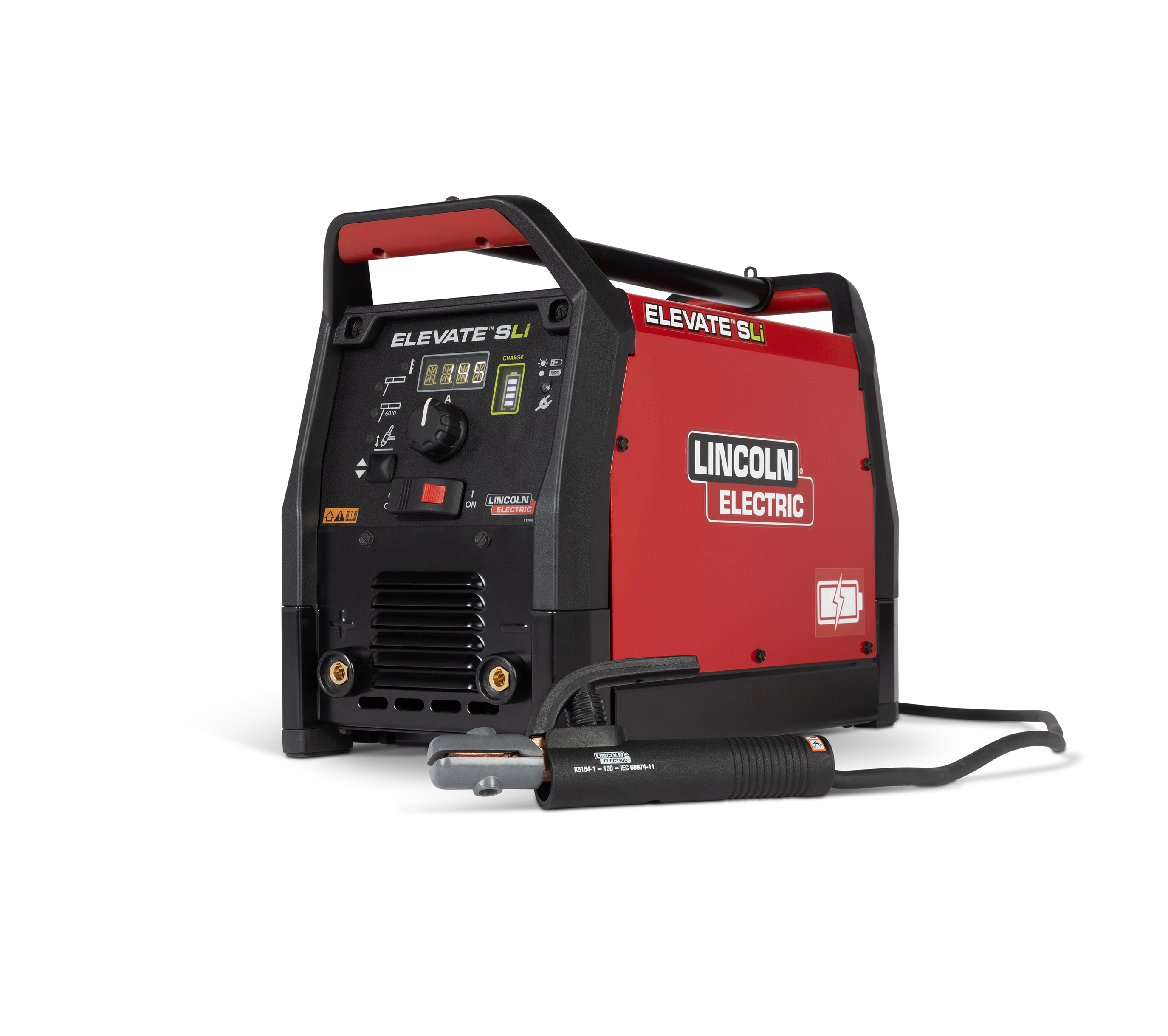

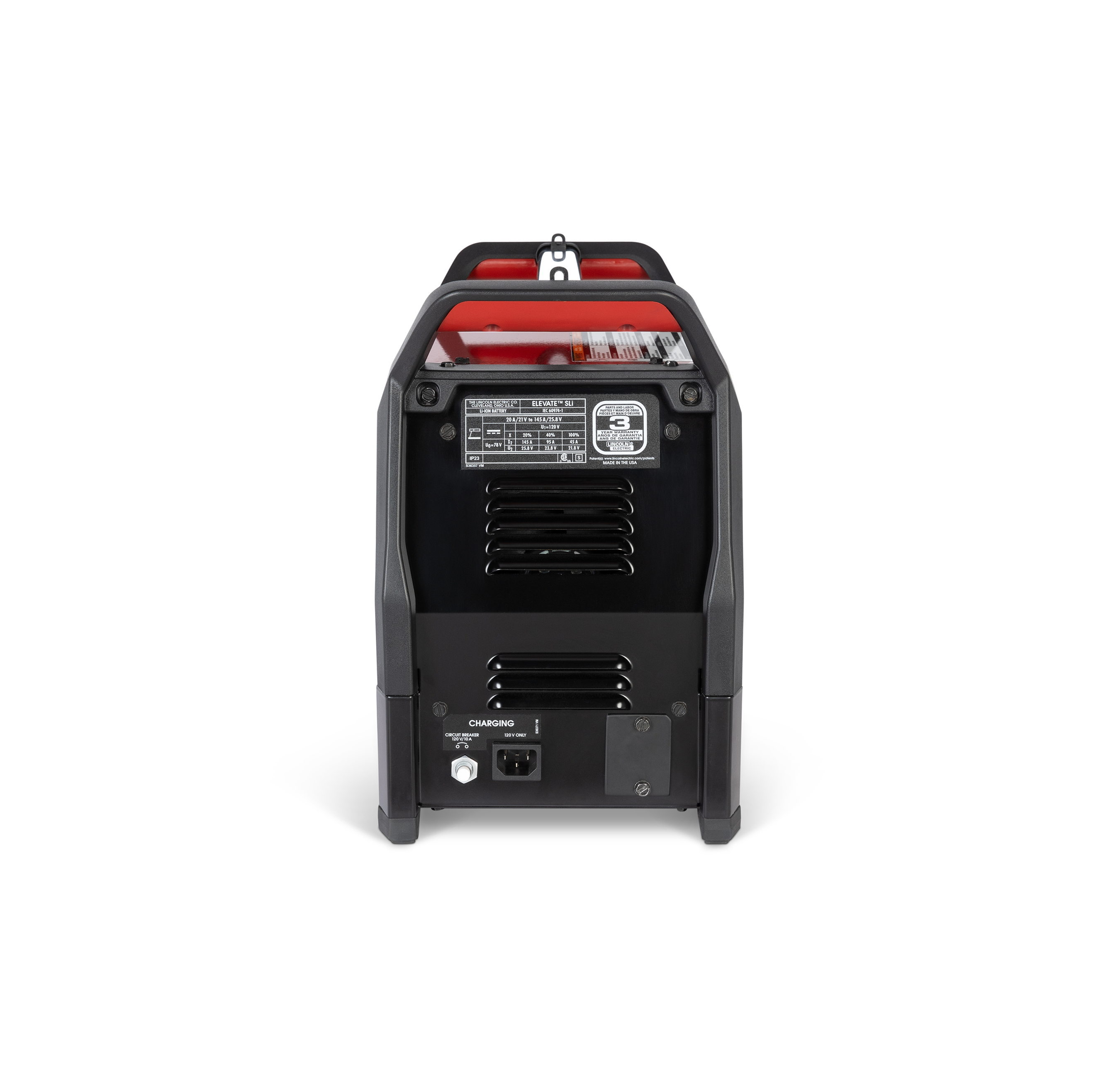

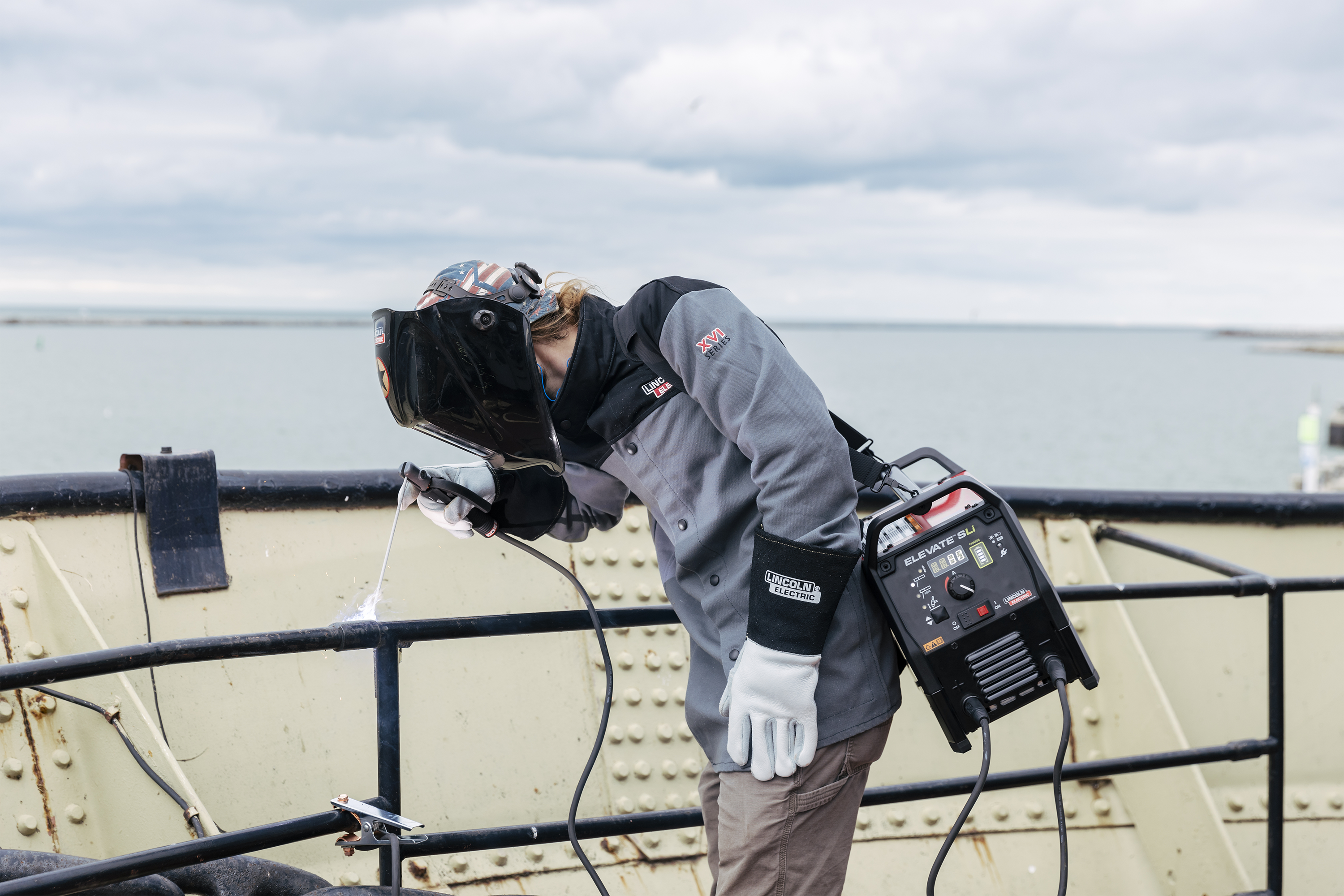

Lincoln Elevate™ SLi Battery Powered Welder - K4706-1

SKU:K4706-1

Brand:Lincoln Electric

Availbility:

In stock

Lincoln Elevate™ SLi Battery Powered Welder - K4706-1

Name: Lincoln Elevate™ SLi Battery Powered Welder - K4706-1
Brand: Lincoln Electric
SKU: K4706-1
Price: 3789.99 USD
Availability: InStock

The brand new Elevate™ SLi Battery Powered Welder was developed for one purpose – for those who need to work remotely without the need for a gas-powered engine, generators, or extra cables. Say goodbye to excessive noise and high fuel costs - our internal rechargeable battery technology (LFP) allows you to weld anywhere. You no longer need to be near main power to weld.

$3,789.99

Product variants

Quantity

Free Shipping Over $150

Satisfaction Guaranteed

Secure Checkout

Buying in Bulk?

Save more when you buy more! Reach us out for more details.

Contact Us

Enhance Your Gear With Accessories

Lincoln Elevate™ SLi Battery Powered Welder - K4706-1

$3,789.99

Includes:

✓ ELEVATE™ SLi Battery Powered Welder

✓ Work Cable and Clamp with Twist Mate™ Plug (K5482-1)

✓ 120V Input Cord, 8 ft. (2.4m) (KP5655-1)

✓ 200A Industrial Electrode Holder, Cable and Twist Mate™ Plug (K5612-1)

✓ Fully Adjustable Shoulder Strap (KP5656-1)

Features

Outstanding Arc Performance

Provides a powerful 145A output for highly efficient welding.

Proven Chopper Technology

Ensures easy starts, a smooth arc, low spatter, and optimal bead appearance.

Range of Welding Capabilities

Supports a wide range of welding rods, including 6010 and 7018 up to 5/32", and features Touch Start TIG functionality.

Advance Features

Hot Start and Arc Force can be adjusted to improve electrode starting and control penetration profile.

Incredible Portability

Designed for easy transportation, weighing only 33 lbs and featuring an adjustable shoulder strap for added convenience.

Go Anywhere Sustainably

Easily maneuverable on job sites and does not require extra-long weld cables or a generator, making it an excellent option for remote work locations.

Internal Rechargeable Battery

Employs Lithium Iron Phosphate technology to offer extended battery life, enabling the welding of up to electrodes on a single charge.

All-in-One Internal Charging System

The integrated internal charging system can charge in 60 minutes using 120V input power, eliminating the need for an external charger.

Built for Durability

Built to withstand challenging welding environments with an IP23S rating and fan as-needed circuitry, ensuring long-lasting performance

Trusted Expertise & Support

Backed by a 3-year warranty from Lincoln Electric, providing peace of mind and reliable support for your investment.

Machine Inputs & Outputs

Phase 1: Input Voltage #1 (Voltage/Phase/Hertz)	120/1/60
Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle)	Stick 145A/25.8V
Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle)	TIG 145A/15.8V

Product Weights & Dimensions

Dimensions (H x W x D)	14 in x 9.1 in x 18.3 in (356 mm x 231 mm x 465 mm)
Net Weight	33 lbs (15 kg)

General Specification

Machines Processes	Stick (SMAW) TIG (GTAW)
Open Circuit Voltage	Average: 55V Peak: 68V
Number of Operators per Machine	1
Input Voltage	120
Input Hertz	60 Hz
Input Phase	Single Phase
Mode Icon	CC
Output Range	Stick : 10-145A TIG 4-145A
Polarity	DC

Machine Technologies & Connections

IEC Rating	IP23S
Machines Communication Technology	analog
Work Lead Connector Type	Dinse

Battery

Battery Type	Lithium Iron Phosphate (LiFePO4) battery
Watt Hours (Wh)	576
Charge Time	60 minutes

Application

Typical Application

Construction
Mining
Railroad Maintenance
Automotive
Brewery
Construction & Field Erection
General Fabrication
Maintenance & Repair
Marine Applications
Marine Fabrication & Repair
Offshore
Repair Welding
Shipbuilding
Structural Fabrication
