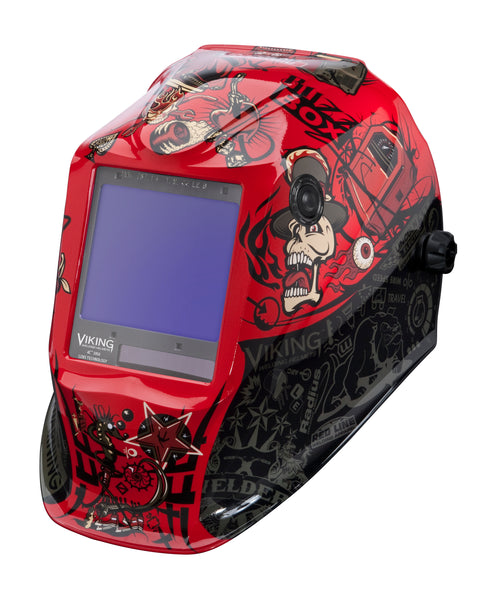

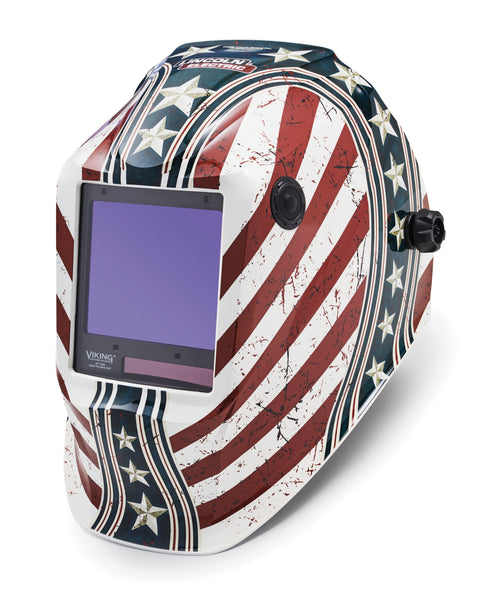

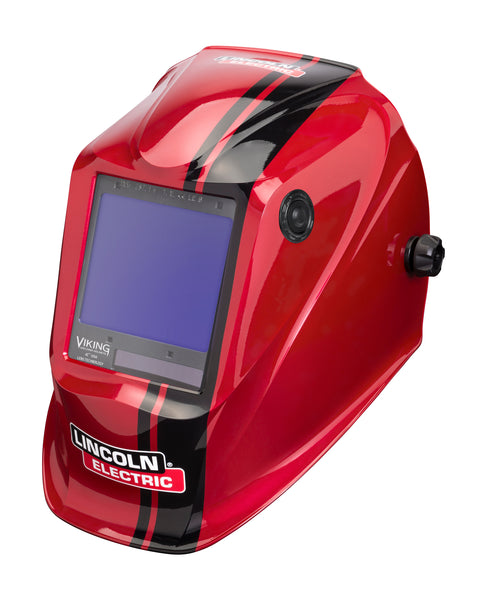

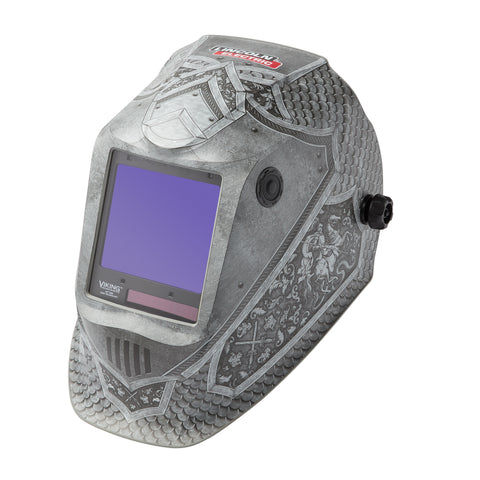

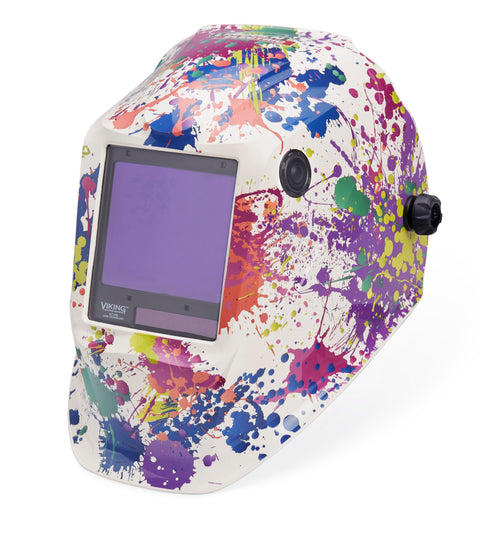

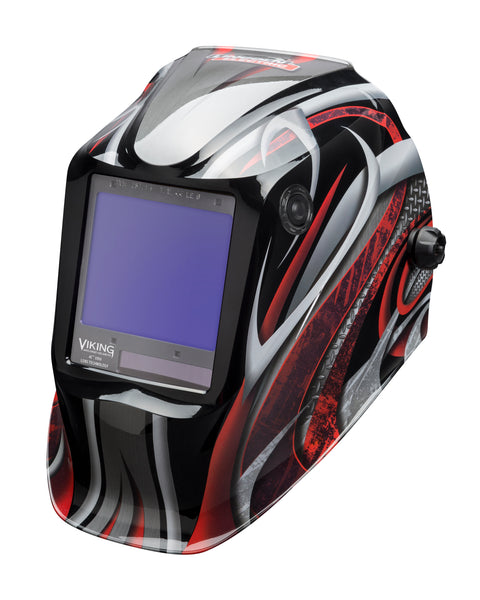

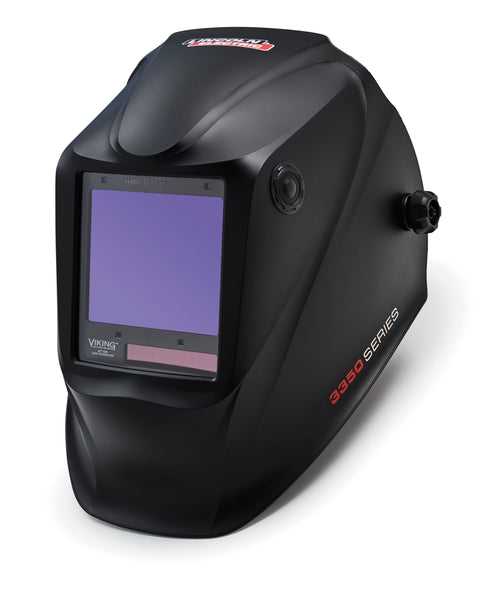

The Lincoln Viking 3350 Series Auto Darkening Welding Helmet now includes redesigned headgear, an external grind button, and matte black shell. This light weight (20 oz.) hood has grind mode, shade 5-13 continuously variable control, internal sensitivity and delay controls. These helmets are Magnifying "cheater" lens capable and hard hat adapter capable.
Features

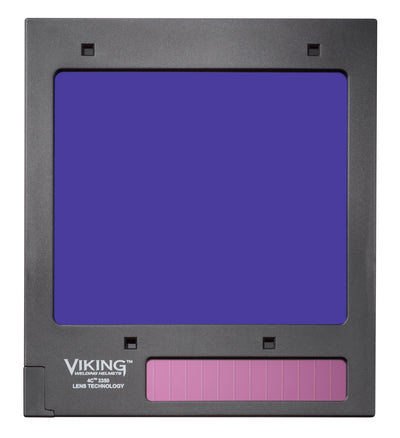

- Industry Leading Optics - 4C® Lens Technology, 1/1/1/1 Optical Clarity and extra large 12.5 sq. inch viewing area
- All Day Comfort - Innovative X6 Headgear distributes weight, reduces pressure and optimizes balance
- Increased Productivity - External low profile grind control
- Professional Versatility - Optimized performance for all welding/cutting processes & enviroments
- 3 year hassle free warranty
Includes
- Helmet
- Headgear
- Storage Bag
- Bandanna
- Helmet stickers

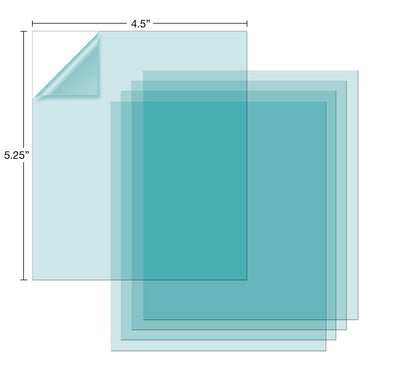

- 5 outside cover lens
- 2 inside cover lens
LENS SWITCHING SPEED (SEC) | 1/25,000 |
VARIABLE SHADE/CONTROL | 5-13 Internal |
BATTERY REPLACEMENT TYPE | 1 CR2450 Replaceable Battery |
MAGNIFYING "CHEATER" CAPABLE LENS | Yes |
GRIND MODE SHADE/CONTROL | 3.5 / External & Internal |
LIGHT SENSITIVITY CONTROL | Continuous |
DELAY CONTROL DARK TO LIGHT (SEC) | 0.1 - 1.0 Fully Adjustable |
ARC SENSORS | 4 |
TIG AMP RATING |
|
CARTRIDGE SIZE | 4.5 in x 5.25 in (114 mm x 133 mm) |
VIEW SIZE | 3.74 in x 3.34 in (95 mm x 85 mm) |
TEMPERATURE RANGE |
|
WARRANTY | 3 Years |
