Description
What's Included

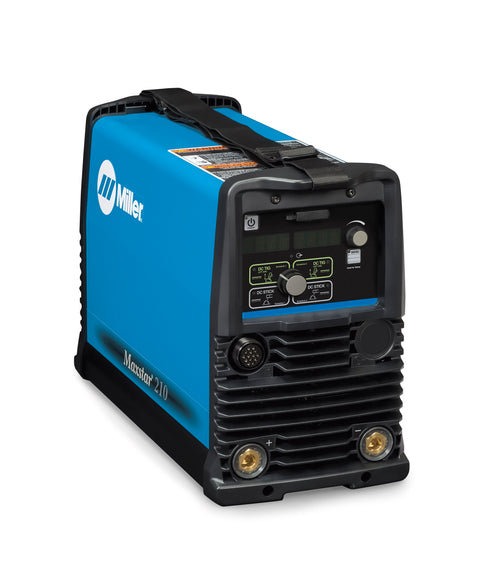

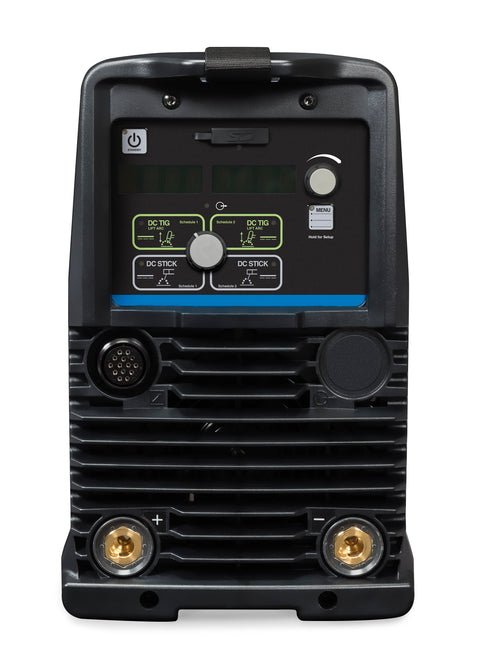

- Maxstar® 210 STR
- 8 ft. (2.4 m) primary cord
- Adjustable shoulder strap
- (2) 50 mm Dinse style connectors
Specifications
Processes
TIG (GTAW)
Stick (SMAW)
TIG DC (GTAW-DC)
General Specifications
| Title | Maxstar® STR 210 120-480 V |
|---|---|
| Industries Interests |
Farm and Ranch Maintenance and Repair - Field Operations Maintenance and Repair - In Plant Shipbuilding Work / Service Trucks |
| Weldable Metals |
Stainless Steel Steel |
| Input Voltage |
110/115/120 V 208 V 220/230/240 V 380/400 V 460/480 V |
| Input Phase | 1- and 3-Phase |
| Input Hz | 50 / 60 Hz |
| Current Type | DC |
| Max Open Circuit Voltage | 80 VDC |
| Portability |
Handle(s) Running Gear / Cart (Optional) Strap |
| Weld Output | CC |
| Net Width | 8.6 in |
| Net Height | 13.6 in |
| Net Length | 19.5 in |
| Net Weight | 38 lbs |
| Warranty |
3 Years
Miller's True Blue Warranty |
