Miller Multimatic 215 Multiprocess Welder
Miller Multimatic 215 Multiprocess Welder
  • SKU: 907693
  • Brand: Miller Electric
  • Availbility: IN STOCK

Miller Multimatic 215 Multiprocess Welder

2 reviews
On Sale
Save $502.00

Easy-to-use and versatile MIG, Stick and DC TIG welder that helps build skills. Color screen featuring Auto-Set™ Elite. This all-in-one welder connects to 120 or 240 volt input power. Welds up to 3/8” mild steel.

Regular price $2,417.00 Sale price $1,915.00
  • Earn 3830 Reward Points

  • Free Shipping over $75
  • Satisfaction Guaranteed
  • Secure Checkout
  • Description
  • Specs
  • Videos

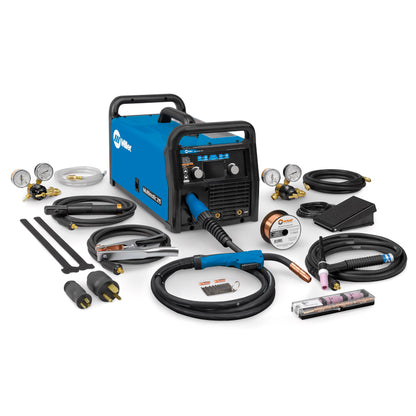

What's Included

  • Multimatic® 215
  • Material thickness gauge #229895
  • 6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
  • 10 ft (3 m) MDX™-100 MIG gun
  • 13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector
  • 10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector
  • Argon and AR/CO2 mix regulator/flow gauge with hose
  • Spool of Hobart® .030 in (0.8 mm) solid wire
  • Two contact tips for .030 in (0.8 mm) wire
  • Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
  • Hook-and-loop cord wraps
  • TIG Package Includes:

    • Weldcraft A-150 TIG torch with Dinse-style connector
    • RFCS-RJ45 foot pedal
    • Flow gauge regulator with 12 ft. (3.7 m) gas hose
    • AK2C torch accessory kit

      Pulsed-MIG Advantage
      Whether welding aluminum, steel or stainless steel, improving productivity by 30, 50 or 100% and saving tens of thousands of dollars are typical results when switching to Pulsed-MIG with the Millermatic 350P.

      Millermatic 350P Autobody Aluminum Package
      The automotive industry is trending to aluminum frames and body panels to improve performance and fuel mileage. Welding thin gauge aluminum creates problems with warping, distortion and burn through. The Millermatic 350P Autobody Aluminum Package makes it easy to setup, use and make quality aluminum repairs.

      Aluminum Pulse Hot Start
      Automatically provides more arc power to eliminate a "cold start" that is inherent with aluminum starts.
      Miller's Gun-On-Demand feature allows you to use either a standard MIG gun, a Spoolmatic 15/30A spool gun or any other Miller push-pull gun without flipping a switch. The machine senses which gun you are using when you pull the trigger.
      Multi-voltage plug (MVP™)
      Multi-voltage plug (MVP) allows connection to common 120 or 240 V power receptacles without the use of any tools— simply choose the plug that fits the receptacle and connect to the power cord.
      Auto Spool Gun Detect™
      Auto Spool Gun Detect™ automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch. The Spoolmate 100 and Spoolmate 150 are compatible with the Multimatic 215.

      Smooth-Start™ provides smooth, spatter-free MIG starts.

      Fan-On-Demand™ power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled though the machine.
      Sharp Arc
      Optimizes the size and shape of the arc cone, bead width and appearance and puddle fluidity.
      The Fan-On-Demand Cooling system only operates when needed, reducing power consumption and keeping internal components cleaner.
      Line Voltage Compensation (LVC)
      Line Voltage Compensation keeps output of the power source constant regardless of fluctuation in input power ± 10%.

      Multiprocess Capabilities
      MIG, flux-cored, DC stick and DC TIG processes, allowing you to build your skills.

      Color LCD with Auto-Set™ Elite
      Auto-Set Elite can be used on multiple materials and multiple processes with the ability to fine-tune your settings. Simple to set up and use!

      Inverter Technology
      Inverter technology combines best-in-class arc characteristics with the portability of a 38-pound machine. The arc is extremely forgiving to variations in arc length and travel speeds.
      Two Gas Connections
      There are two gas connections on the back of the machine—one for MIG and one for TIG.

      Angled Drive System with Quick Select™ Drive Roll
      Robust, angled wire drive with Quick Select™ drive roll. The Quick Select drive roll offers three grooves- two for different size solid wire and a third for flux-cored wire.


      General Specifications

      Title Multimatic® 215 Multiprocess Welder with TIG Kit
      Industries Interests DIY / Home Hobbyist
      Farm and Ranch
      Metal Art / Sculptures
      Racing / Customizing / Restoring
      Weldable Metals Steel
      Stainless Steel
      Input Voltage 110/115/120 V
      220/230/240 V
      Input Phase 1-Phase
      Input Hz 50 / 60 Hz
      Current Type DC
      Max Open Circuit Voltage 58 VDC
      Wire Feed Speed 1.5 m/min - 15.2 m/min
      60 IPM - 600 IPM
      Portability Handle(s)
      Running Gear / Cart (Optional)
      Weld Output CC / CV
      Net Width 11.25 in
      Net Height 12.5 in
      Net Length 20.5 in
      Net Weight 44 lbs
      Warranty 3 Years
      Miller's True Blue Warranty



      Multimatic 215 Spec Sheet
