• SKU: 22-30-580-6
  • Brand: Smith
  • Availbility: SHIPS in 2-3 Days

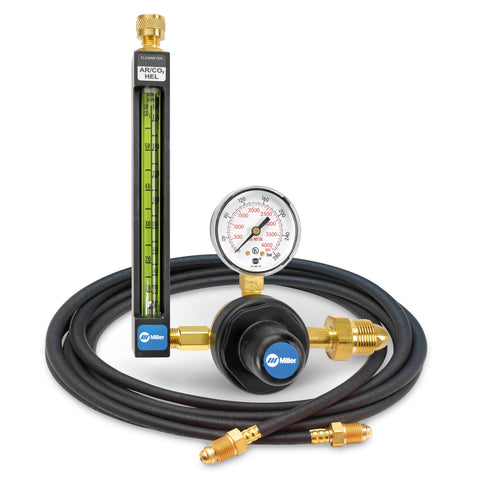

Miller | Smith Helium Flowmeter Regulator w/Hose - CGA 580

On Sale
Save $113.88

Rugged heavy-duty industrial-grade regulators provide efficient and accurate regulation, and include our exclusive self-centering flowball. They are constructed with our exclusive Sure Seat™ filtered seat technology for extended seat and regulator life.

Regular price $294.88 Sale price $181.00
  • Earn 362 Reward Points

  • Free Shipping over $75
  • Satisfaction Guaranteed
  • Secure Checkout
  • Description
  • Specs
Description

Features

  • Filtered seats prevent contamination from entering the seating area, reducing repair costs and downtime.
  • Filtered seats also reduce CO2 freeze-up.
  • Provides high argon flow capacity up to 55 SCFH.
  • Includes 6 foot hose.
Sure-Seat™ filtered high-pressure seat assembly
Series 20™ single-stage regulators are extremely durable and contain our exclusive Sure Seat™ filtered seat technology. Filtered seats prevent contamination from entering the seating area, reducing repair costs and downtime.
Rugged Protective Flowmeter Housing
Flow tubes are protected from accidental damage while offering unobstructed view of flow reading.
Shatter-Resistant Multi-Scale Flow Tube
Tubes are made of shatter-resistant polycarbonate resin and feature multiple scales.
Unique Self-Centering Ball Guide
Miller-Smith’s exclusive ball-centering flow tube provides accurate flow readings even if the tube is tipped. This ensures good weld quality and gas savings. Non self-centering flow tube ball tends to float off center. Actual gas flow can be up to 2-1/2 times greater than is indicated. Note: Self-centering ball guide available on 16530 and 16530 models only
True Blue Warranty
Flowmeter regulators are covered by the Miller True Blue® 3 YR. warranty.

Specifications

Processes

Oxy-Fuel Cutting, Welding & Heating

General Specifications

Title Argon/CO2/Helium flowmeter regulator w/hose,30 PSIG
Inlet Connection CGA 580
Flow Range Argon 10-55 SCFH (5-25 LPM), CO2 10-55 SCFH (5-25 LPM), Helium 20-160 SCFH (10-75 LPM)
Gas Argon
CO2
Helium
Hose
Preset Delivery Pressure 30 PSIG (2 Bar)
Pressure Switch
Regulator Hard Hats
Vent 116 in FNPT
Warranty 3 Years
Miller's Gas Equipment and Gas Control Warranty
