Description
Rated Cutting Capacity
The rated cutting capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.

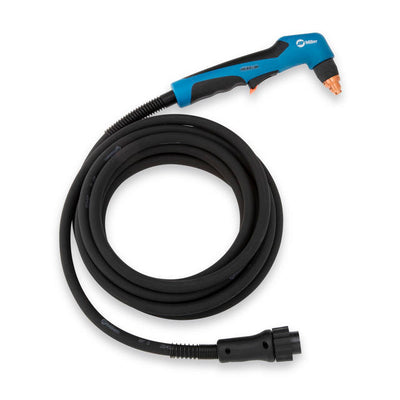

XT40 Torch
Ergonomic handle with unique no-slip grip, thumb guide and finger contours help prevent operator fatigue while the flexible cable makes maneuvering easy. Now comes with the new ultra flexible Quick Connect work lead with smaller heavy duty clamp.
Auto-Line™ and MVP™ (multi-voltage plug) Adapters
Auto-Line provides state-of-the-art flexibility to the end user. The Auto-Line circuitry automatically connects to 120–240 VAC, single-phase power, 50/60 Hz, without removing the covers to relink the power source. Miller’s multi-voltage plug (MVP™) Adapters allow connection to 120 or 240 V receptacles without tools—choose the adapter that fits the receptacle and connect it to the power cord.
Auto-Refire™
Auto-Refire™ Technology provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metal—all automatically! No need for manual re-triggering which reduces user hand fatigue.
Automatic Air Regulation
The unit automatically compensates for input pressure variation to provide constant recommended torch pressure for optimum cutting and gouging performance.
Portability
Portable in the shop or at the job site—at 21 pounds the shoulder strap allows the end user to easily move from location to location.

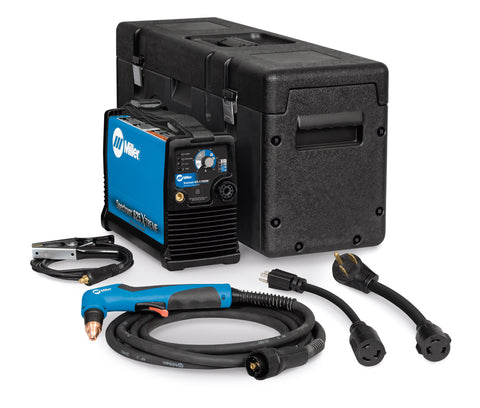

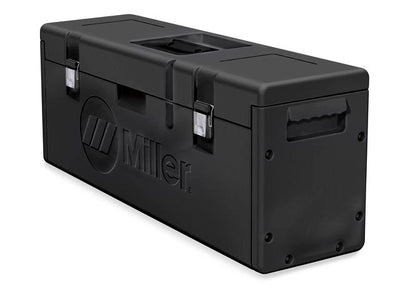

Protective X-CASE™
Miller's X-CASE provides ultimate protection during transport and storage. Additional space is ideal for MVP Plug Adapters, consumable box, as well as gloves, eye protection, etc.
Specifications
Processes
Plasma (PAC)
General Specifications
| Title | Spectrum® 625 X-TREME™ 12-ft. XT40 Quick Connect |
|---|---|
| Industries Interests |
Racing / Customizing / Restoring Construction DIY / Home Hobbyist Farm and Ranch Infrastructure Manufacturing Metal Art / Sculptures Shipbuilding Boat / Yacht |
| Capability Gouging | — |
| Plasma Material Thickness |
Mild Steel 5/8 in. (15.9 mm) 15 IPM Stainless Steel 1/2 in. (12.7 mm) 15 IPM Aluminum 3/8 in. (9.5 mm) 15 IPM |
| Rated Output at 104 Degrees Fahrenheit | 120 (15 A): 20 A at 88 VDC, 35% duty cycle; 120 V (20 A) 27 A at 91 VDC, 20% duty cycle; 240 V: 40 A at 140 VDC, 50% duty cycle |
| Recommended Generator Power | 8000 |
| Input Voltage |
110/115/120 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 60 Hz |
| Input Amperage | 13.6 A |
| Net Width | 5.5 in |
| Net Height | 9 in |
| Net Length | 13.25 in |
| Net Weight | 21 lbs |
| Warranty |
3 Years
Miller's True Blue Warranty |
