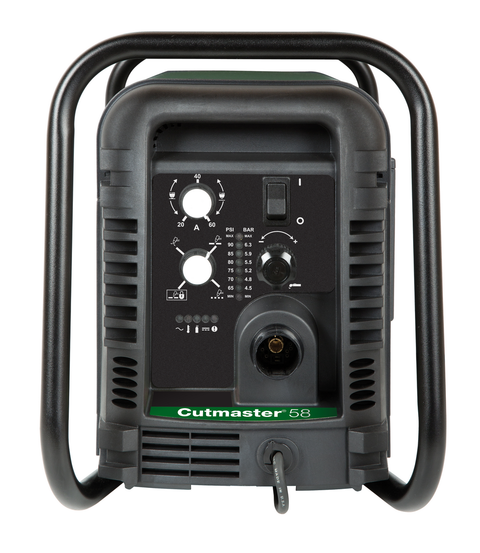

The Cutmaster 58 is the most powerful 5/8 in. (16 mm) machine on the market today. This unit cuts through mild, stainless, or aluminum up to 1 in. (25 mm) thick. The Cutmaster 58 combines power with the well-known performance and features of the industry-leading 1Torch® .
Features
- 6.2 kW rated output, 50% Duty Cycle at 60 A, available in 600 V and 208-460 V with automatic multi-voltage detection
- Built for portability and durability with the integral multi-handle design

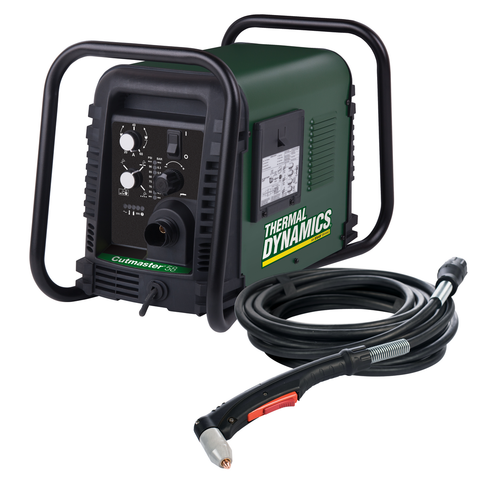

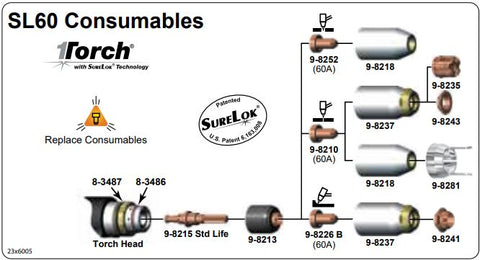

- SL60QD 1Torch quick disconnect with ATC (Advanced Torch Connector) allowing selective replacement of either the torch handle assembly or the torch leads, using the patented SureLok technology also available as an RPT Torch
- 5/8 in. (16 mm) recommended cut capacity with greater than 1 in. (25 mm) maximum cut and 1/2 in. (13 mm) pierce rating
- Industry leading 4-year warranty on power supply and 1-year warranty on torch
Specifications | |
---|---|
Output Power | 6.2 kW |
Input Ratings | 600 V, 3 ph, 50/60 Hz (Canada) 460 V, 3 ph, 50 Hz 208-230/460 V, 1/3 ph, 50/60 Hz |
Duty Cycle | 30 A @ 100 % duty cycle 60 A @ 40 % duty cycle 50 A @ 60 % duty cycle |
Operating Temperature | 0 - 40 °C ( 32 - 104 °F ) |
Gas Pressure | 48 bar ( 70 psi ) |
Gas Flow | 190 l/min ( 402 cfh ) |
Pierces | 13 mm ( 1/2 in. ) |
Torch Air Pressure | 5.2 bar ( 75 psi ) |
Torch Air Consumption | 190 l/min ( 6.7 cfm ) |
Dimensions, L x W x H | 610 x 305 x 381 mm ( 24 x 12 x 15 in. ) |
Weight | 19.5 kg ( 43 lbs ) |
Recommended Cut | 16 mm ( 5/8 in. ) |
Maximum Cut | 25 mm ( 1 in. ) |
