Tweco 22-50 Slip-On Nozzle 1/2" 2/Pack - (12201110)
  • SKU: 12201110
  • Brand: Tweco
  • Availbility: IN STOCK

Tweco 22-50 Slip-On Nozzle 1/2" 2/Pack - (12201110)

On Sale
Save $1.97
$12.58 $10.61
  • Earn 20 Reward Points

  • Free Shipping over $75
  • Satisfaction Guaranteed
  • Secure Checkout
  • Description
Description

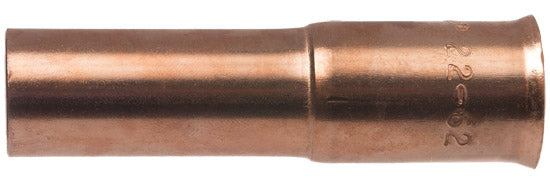

Professional & Weldskill 22 Series Air Cooled Slip-on Nozzles are offered in formed or HD 3-piece nozzle designs. Formed nozzles come in standard or standard short stop and must be used with Nozzle Insulator Part no. 32 (Stock No. 1320-1100); sold separately.


Features


  • Used in light to medium duty welding application up to 180 amperes
  • Formed copper nozzle uses nozzle insulator Part No. 32 (1320-1100)
  • Easy identification - Part No. rolled stamped on the outside surface



Model 1220-1101 1220-1110 1220-1111 1220-1120 1220-1121 1220-1301
Cooling Air Air Air Air Air Air
Inside Diameter 3/8 in.
9.5 mm 		1/2 in.
12.7 mm 		1/2 in.
12.7 mm 		5/8 in.
15.9 mm 		5/8 in.
15.9 mm 		3/8 in.
9.5 mm
Nozzle Design Standard Short Stop Standard Standard Short Stop Standard Standard Short Stop Standard Short Stop
Nozzle Style Slip-On Slip-On Slip-On Slip-On Slip-On Slip-On
Nozzle/Contact Tip Relationship Flush to 1/8" (3.2 mm) Tip Recess Adjustable Tip Recess - Tip Protruding Flush to 1/8" (3.2 mm) Tip Recess Adjustable Tip Recess - Tip Protruding Flush to 1/8" (3.2 mm) Tip Recess Flush to 1/8" (3.2 mm) Tip Recess
Outside Diameter 0.750 in.
19.05 mm 		0.750 in.
19.05 mm 		0.750 in.
19.05 mm 		0.750 in.
19.05 mm 		0.750 in.
19.05 mm 		0.750 in.
19.05 mm
Series 22 Series 22 Series 22 Series 22 Series 22 Series 22 Series
