• SKU: 12401424
  • Brand: Tweco
  • Availbility: IN STOCK

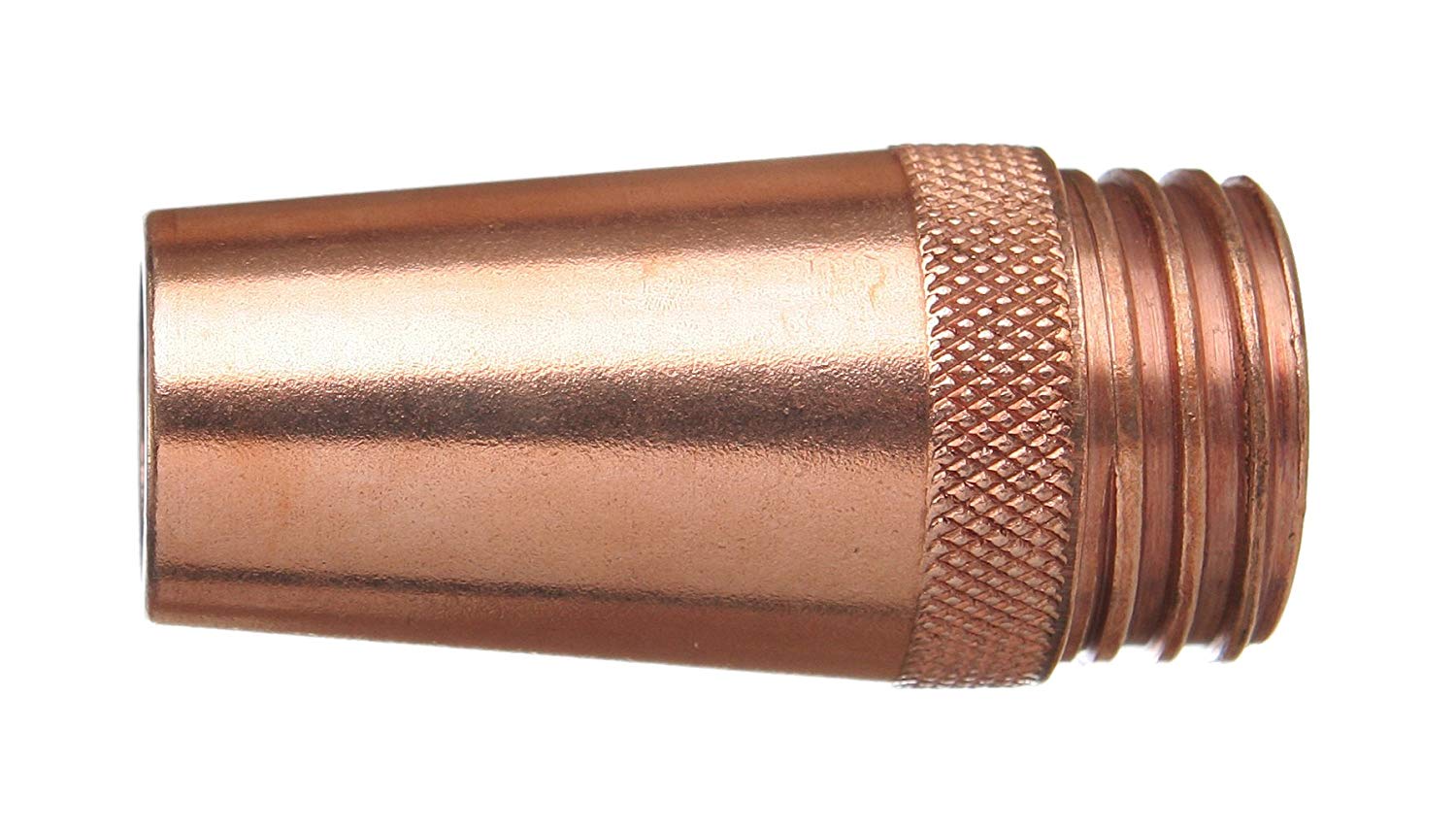

Tweco 24CT-62S Thread-On Nozzle 5/8" 2/Pack - (12401423)

On Sale
Save $10.34
Regular price $29.54 Sale price $19.20
  • Earn 38 Reward Points

  • Free Shipping over $75
  • Satisfaction Guaranteed
  • Secure Checkout
  • Description
Description

Professional & WeldSkill 24 Series Air Cooled Nozzles are offered in 2-piece, coarse (CT) and fine thread (FN) series, as well as slip-on. 2-piece nozzles require 34CT or 34FN Insulator; sold separately.


Features

  • Used in light to medium duty welding application up to 400 amperes
  • Formed and 3-piece nozzle designs
  • Easy identification - Part No. rolled stamped on the outside surface
  • Tapered nozzle 3-piece design - does not require an additional insulator
  • Nozzle threads onto the conductor tube
Formed nozzles must use Part No. 34A (Stock No. 1340-1100) nozzle insulator



Model Cooling Inside Diameter Nozzle Design Nozzle Style Nozzle/Contact Tip Relationship Outside Diameter Series
1240-1101 Air 3/8 in.
9.5 mm
Standard Short Stop Slip-On 1/8" (3.2 mm) Tip Recess 0.750 in.
19.05 mm
24A Series
1240-1110 Air 1/2 in.
12.7 mm
Standard Slip-On Adjustable Tip Recess - Tip Protruding 0.750 in.
19.05 mm
24A Series
1240-1111 Air 1/2 in.
12.7 mm
Standard Short Stop Slip-On 1/8" (3.2 mm) Tip Recess 0.750 in.
19.05 mm
24A Series
1240-1120 Air 5/8 in.
15.9 mm
Standard Slip-On Adjustable Tip Recess - Tip Protruding 0.750 in.
19.05 mm
24A Series
1240-1121 Air 5/8 in.
15.9 mm
Standard Short Stop Slip-On 1/8" (3.2 mm) Tip Recess 0.750 in.
19.05 mm
24A Series
1240-1130 Air 3/4 in.
19.5 mm
Standard Slip-On Adjustable Tip Recess - Tip Protruding 0.750 in.
19.05 mm
24A Series
1240-1220 Air 5/8 in.
15.9 mm
Standard, Heavy Duty Slip-On Adjustable Tip Recess - Tip Protruding 0.750 in.
19.05 mm
24A Series
1240-1230 Air 3/4 in.
19.5 mm
Standard, Heavy Duty Slip-On Adjustable Tip Recess - Tip Protruding 0.750 in.
19.05 mm
24A Series
1240-1231 Air 3/4 in.
19.5 mm
Standard Short Stop Slip-On 1/8" (3.2 mm) Tip Recess 0.750 in.
19.05 mm
24A Series
1240-1301 Air 3/8 in.
9.5 mm
Standard Short Stop Slip-On 1/8" (3.2 mm) Tip Recess 0.750 in.
19.05 mm
24A Series
1240-1404 Air 3/8 in.
9.5 mm
Standard Short Stop Thread-On 5/32" (3.97 mm) Tip Recess 1.070 in.
27.2 mm
24CT Series
1240-1414 Air 1/2 in.
12.7 mm
Standard Short Stop Thread-On 5/32" (3.97 mm) Tip Recess 1.070 in.
27.2 mm
24CT Series
1240-1422 Air 5/8 in.
15.9 mm
Tapered Thread-On 1/16" (1.59 mm) Tip Recess 1.070 in.
27.2 mm
24CT Series
1240-1423 Air 5/8 in.
15.9 mm
Tapered Thread-On 1/2" (12.7 mm) Tip Recess 1.070 in.
27.2 mm
24CT Series
1240-1424 Air 5/8 in.
15.9 mm
Standard Short Stop Thread-On 5/32" (3.97 mm) Tip Recess 1.070 in.
27.2 mm
24CT Series
1240-1434 Air 3/4 in.
19.5 mm
Standard Short Stop Thread-On 5/32" (3.97 mm) Tip Recess 1.070 in.
27.2 mm
24CT Series
