Description

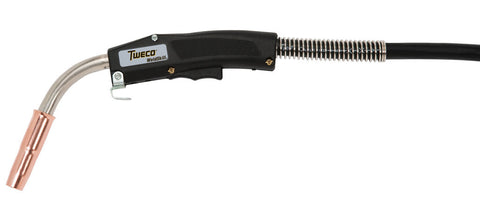

400 AMP 60% Duty cycle MIG gun available with Tweco, Miller, Lincoln and Euro style rear connector suitable for heavy duty fabrication
Features
- Wide selection of front end consumables available to fit the needs of the application
- Industry standard for 40+ years, oval shaped handle reduces grip required to manipulate MIG gun position
- Balanced to pivot at the center of the handle for ease of use in different welding positions, and thereby reduces operator fatigue
- Gun hanger located at the bottom for ease of resting gun when not in use
- Heavy-duty design for industrial application environments using special plastic composition for high impact crush-resistant handle
- Steel spring strain relief provides support to the Cablehoz® coming out the rear of the handle to minimize wire feed issues
- Mechanical connection of conductor tube and cablehoz within the handle providing excellent current path to the end of the contact tip
- Two (2) ball-point screws are used to secure the Cablehoz® and conductor tube in place
- Trigger contains silver plated contacts with a self cleaning action every time the trigger is engaged & disengaged
- Industry Standard
- Metal jacket conductor tube
- Enhanced direct plug capabilities
Arc Gun Specifications
CO2
Amps | 400 A |
Applications | Heavy Duty Fabrication |
Conduit Liners | 44 Series |
Cooling | Air |
Duty Cycle | 60 % |
Wire Diameter | 1/16 in. (1.6 mm) |
