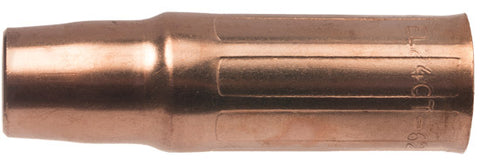

Tweco EL24CT-50 Thread-On Nozzle 1/2" 2/Pack - (12601651)
  • SKU: 12601651
  • Brand: Tweco
  • Availbility: IN STOCK

Tweco EL24CT-50 Thread-On Nozzle 1/2" 2/Pack - (12601651)

On Sale
Save $6.16
$39.38 $33.22
  • Earn 66 Reward Points

  • Free Shipping over $75
  • Satisfaction Guaranteed
  • Secure Checkout
  • Description
Description


Features

  • Used in medium to heavy duty welding application up to 450 amperes
  • 3-piece nozzle design includes: Nozzle Housing - Cut and Formed from 122 DHP copper alloy tubing, Nozzle Insert - machined from a solid brass allow and machining the internal threads to match the gas diffuser, Nozzle insulator - made from G7 silicone material, providing the electrical insulation needed from the gas diffuser
  • Easy identification - Part No. rolled stamped on the outside surface
  • Tapered nozzle 3-piece design - does not require an additional insulator
  • Nozzle threads onto the gas diffuser



Arc Gun Consumables

Model Cooling Inside Diameter Nozzle Design Nozzle Style Nozzle/Contact Tip Relationship
1260-1606 Air 3/8 in.
9.5 mm 		Tapered Slip-On 1/8" - 5/32" (3.2 mm - 3.97 mm) Tip Recess
1260-1607 Air 1/2 in.
12.7 mm 		Tapered Slip-On 1/8" - 5/32" (3.2 mm - 3.97 mm) Tip Recess
1260-1608 Air 5/8 in.
15.9 mm 		Tapered Slip-On Flush To 1/16" (1.6 mm) Tip Recess
1260-1609 Air 3/4 in.
19.5 mm 		Tapered Slip-On 1/8" - 5/32" (3.2 mm - 3.97 mm) Tip Recess
1260-1631 Air 5/8 in.
15.9 mm 		Tapered, Heavy Duty Slip-On 1/8" - 5/32" (3.2 mm - 3.97 mm) Tip Recess
1260-1632 Air 3/4 in.
19.5 mm 		Tapered, Heavy Duty Slip-On 1/8" - 5/32" (3.2 mm - 3.97 mm) Tip Recess
1260-1650 Air 3/8 in.
9.5 mm 		Standard Thread-On 1/8" - 5/32" (3.2 mm - 3.97 mm) Tip Recess
1260-1651 Air 1/2 in.
12.7 mm 		Standard Thread-On 1/8" - 5/32" (3.2 mm - 3.97 mm) Tip Recess
1260-1652 Air 5/8 in.
15.9 mm 		Standard Thread-On 1/8" - 5/32" (3.2 mm - 3.97 mm) Tip Recess
1260-1653 Air 3/4 in.
19.5 mm 		Standard Thread-On 1/8" - 5/32" (3.2 mm - 3.97 mm) Tip Recess
1260-1657 Air 5/8 in.
15.9 mm 		Standard, Heavy Duty Thread-On 1/8" - 5/32" (3.2 mm - 3.97 mm) Tip Recess
1260-1658 Air 3/4 in.
19.5 mm 		Standard, Heavy Duty Thread-On 1/8" - 5/32" (3.2 mm - 3.97 mm) Tip Recess
1260-1667 Air 5/8 in.
15.9 mm 		Standard Thread-On Flush To 1/16" (1.6 mm) Tip Recess
1260-1677 Air 5/8 in.
15.9 mm 		Tapered Slip-On 3/8" (9.5 mm) Tip Recess
1260-1682 Air 5/8 in.
15.9 mm 		Standard Thread-On 3/8" (9.5 mm) Tip Recess
1260-1701 Air 1/2 in.
12.7 mm 		Standard Thread-On 5/32" (3.97 mm) Tip Protruding
