• SKU: 0330-0012
  • Brand: Victor
  • Availbility: IN STOCK

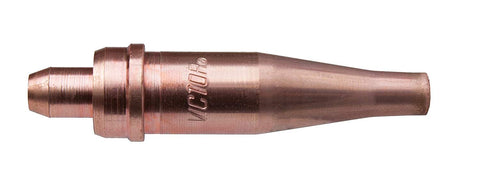

Victor 101 Acetylene Cutting Tips - Select Size

1 review
On Sale
Save $22.44

Acetylene Cutting Tips - Type 101 for manual or mechanized applications

Regular price $35.01 Sale price $12.57
  • Earn 24 Reward Points

  • Free Shipping over $75
  • Satisfaction Guaranteed
  • Secure Checkout
  • Description
  • Specs
Description

Features

  • General Purpose
  • Hand and machine torch cutting

Industries

  • Industrial and General Fabrication
  • Repair and Maintenance
  • Structural Steel Fabrication
  • Light Fabrication
Specifications

Fuel Specifications

0330-0004

Gas Pressure - Acetylene 3-5 psig
Gas Pressure - Cutting Oxygen 20-25 psig
Gas Pressure - Preheat Oxygen 3-5 psig
Total Acetylene Consumption 4-6 cfh
Total Oxygen Consumption 30-35 cfh
Total Preheat Oxygen Consumption 4-6 cfh

0330-0012

Gas Pressure - Acetylene 3-5 psig
Gas Pressure - Cutting Oxygen 25-30 psig
Gas Pressure - Preheat Oxygen 3-5 psig
Total Acetylene Consumption 5-8 cfh
Total Oxygen Consumption 55-60 cfh
Total Preheat Oxygen Consumption 5-9 cfh
Gas Pressure - Acetylene 3-5 psig
Gas Pressure - Cutting Oxygen 30-35 psig
Gas Pressure - Preheat Oxygen 3-6 psig
Total Acetylene Consumption 6-10 cfh
Total Oxygen Consumption 60-65 cfh
Total Preheat Oxygen Consumption 7-11 cfh

0330-0005

Gas Pressure - Acetylene 3-5 psig
Gas Pressure - Cutting Oxygen 30-35 psig
Gas Pressure - Preheat Oxygen 4-7 psig
Total Acetylene Consumption 8-13 cfh
Total Oxygen Consumption 80-85 cfh
Total Preheat Oxygen Consumption 9-14 cfh

0330-0006

Gas Pressure - Acetylene 3-7 psig
Gas Pressure - Cutting Oxygen 40-45 psig
Gas Pressure - Preheat Oxygen 4-12 psig
Total Acetylene Consumption 12-18 cfh
Total Oxygen Consumption 150-160 cfh
Total Preheat Oxygen Consumption 13-20 cfh

0330-0002

Gas Pressure - Acetylene 4-9 psig
Gas Pressure - Cutting Oxygen 40-45 psig
Gas Pressure - Preheat Oxygen 5-14 psig
Total Acetylene Consumption 14-22 cfh
Total Oxygen Consumption 210-225 cfh
Total Preheat Oxygen Consumption 15-24 cfh
Gas Pressure - Acetylene 4-10 psig
Gas Pressure - Cutting Oxygen 45-50 psig
Gas Pressure - Preheat Oxygen 5-16 psig
Total Acetylene Consumption 16-26 cfh
Total Oxygen Consumption 225-240 cfh
Total Preheat Oxygen Consumption 18-29 cfh

0330-0007

Gas Pressure - Acetylene 5-10 psig
Gas Pressure - Cutting Oxygen 40-50 psig
Gas Pressure - Preheat Oxygen 6-17 psig
Total Acetylene Consumption 18-30 cfh
Total Oxygen Consumption 270-320 cfh
Total Preheat Oxygen Consumption 20-33 cfh

0330-0008

Gas Pressure - Acetylene 5-12 psig
Gas Pressure - Cutting Oxygen 45-55 psig
Gas Pressure - Preheat Oxygen 7-18 psig
Total Acetylene Consumption 22-34 cfh
Total Oxygen Consumption 390-425 cfh
Total Preheat Oxygen Consumption 24-37 cfh
Gas Pressure - Acetylene 5-13 psig
Gas Pressure - Cutting Oxygen 50-55 psig
Gas Pressure - Preheat Oxygen 7-20 psig
Total Acetylene Consumption 26-38 cfh
Total Oxygen Consumption 425-450 cfh
Total Preheat Oxygen Consumption 29-41 cfh

0330-0009

Gas Pressure - Acetylene 7-13 psig
Gas Pressure - Cutting Oxygen 45-40 psig
Gas Pressure - Preheat Oxygen 10-22 psig
Total Acetylene Consumption 30-44 cfh
Total Oxygen Consumption 500-600 cfh
Total Preheat Oxygen Consumption 33-48 cfh
Gas Pressure - Acetylene 7-14 psig
Gas Pressure - Cutting Oxygen 45-55 psig
Gas Pressure - Preheat Oxygen 10-25 psig
Total Acetylene Consumption 34-50 cfh
Total Oxygen Consumption 500-600 cfh
Total Preheat Oxygen Consumption 37-55 cfh

0330-0013

Gas Pressure - Acetylene 10-15 psig
Gas Pressure - Cutting Oxygen 45-55 psig
Gas Pressure - Preheat Oxygen 15-30 psig
Total Acetylene Consumption 40-56 cfh
Total Oxygen Consumption 700-850 cfh
Total Preheat Oxygen Consumption 44-62 cfh

0330-0014

Gas Pressure - Acetylene 10-15 psig
Gas Pressure - Cutting Oxygen 45-55 psig
Gas Pressure - Preheat Oxygen 20-35 psig
Total Acetylene Consumption 48-62 cfh
Total Oxygen Consumption 900-1000 cfh
Total Preheat Oxygen Consumption 53-68 cfh

0331-0002

Gas Pressure - Acetylene 3-5 psig
Gas Pressure - Cutting Oxygen 20-25 psig
Gas Pressure - Preheat Oxygen 3-5 psig
Total Acetylene Consumption 3-5 cfh
Total Oxygen Consumption 20-25 cfh
Total Preheat Oxygen Consumption 3-5 cfh

0331-0009

Gas Pressure - Acetylene 3-5 psig
Gas Pressure - Cutting Oxygen 20-25 psig
Gas Pressure - Preheat Oxygen 3-5 psig
Total Acetylene Consumption 4-6 cfh
Total Oxygen Consumption 30-35 cfh
Total Preheat Oxygen Consumption 4-6 cfh

0331-0013

Gas Pressure - Acetylene 3-5 psig
Gas Pressure - Cutting Oxygen 25-30 psig
Gas Pressure - Preheat Oxygen 3-5 psig
Total Acetylene Consumption 5-8 cfh
Total Oxygen Consumption 55-60 cfh
Total Preheat Oxygen Consumption 5-9 cfh
Gas Pressure - Acetylene 3-5 psig
Gas Pressure - Cutting Oxygen 30-35 psig
Gas Pressure - Preheat Oxygen 3-6 psig
Total Acetylene Consumption 6-10 cfh
Total Oxygen Consumption 60-65 cfh
Total Preheat Oxygen Consumption 7-11 cfh

0331-0014

Gas Pressure - Acetylene 3-5 psig
Gas Pressure - Cutting Oxygen 30-35 psig
Gas Pressure - Preheat Oxygen 4-7 psig
Total Acetylene Consumption 8-13 cfh
Total Oxygen Consumption 80-85 cfh
Total Preheat Oxygen Consumption 9-14 cfh

0331-0015

Gas Pressure - Acetylene 3-6 psig
Gas Pressure - Cutting Oxygen 35-40 psig
Gas Pressure - Preheat Oxygen 4-9 psig
Total Acetylene Consumption 10-16 cfh
Total Oxygen Consumption 140-150 cfh
Total Preheat Oxygen Consumption 11-18 cfh
Gas Pressure - Acetylene 3-7 psig
Gas Pressure - Cutting Oxygen 40-45 psig
Gas Pressure - Preheat Oxygen 4-12 psig
Total Acetylene Consumption 12-18 cfh
Total Oxygen Consumption 150-160 cfh
Total Preheat Oxygen Consumption 13-20 cfh

0331-0016

Gas Pressure - Acetylene 4-9 psig
Gas Pressure - Cutting Oxygen 40-45 psig
Gas Pressure - Preheat Oxygen 5-14 psig
Total Acetylene Consumption 14-22 cfh
Total Oxygen Consumption 210-225 cfh
Total Preheat Oxygen Consumption 15-24 cfh
Gas Pressure - Acetylene 4-10 psig
Gas Pressure - Cutting Oxygen 45-50 psig
Gas Pressure - Preheat Oxygen 5-16 psig
Total Acetylene Consumption 16-26 cfh
Total Oxygen Consumption 225-240 cfh
Total Preheat Oxygen Consumption 18-29 cfh

0331-0017

Gas Pressure - Acetylene 5-10 psig
Gas Pressure - Cutting Oxygen 40-50 psig
Gas Pressure - Preheat Oxygen 6-17 psig
Total Acetylene Consumption 18-30 cfh
Total Oxygen Consumption 270-320 cfh
Total Preheat Oxygen Consumption 20-33 cfh

0331-0018

Gas Pressure - Acetylene 5-12 psig
Gas Pressure - Cutting Oxygen 45-55 psig
Gas Pressure - Preheat Oxygen 7-18 psig
Total Acetylene Consumption 22-34 cfh
Total Oxygen Consumption 390-425 cfh
Total Preheat Oxygen Consumption 24-37 cfh
Gas Pressure - Acetylene 5-13 psig
Gas Pressure - Cutting Oxygen 50-55 psig
Gas Pressure - Preheat Oxygen 7-20 psig
Total Acetylene Consumption 26-38 cfh
Total Oxygen Consumption 425-450 cfh
Total Preheat Oxygen Consumption 29-41 cfh

Operating Specifications

0330-0004

Average Kerf Width .05 in.
Cutting Speed 27-30 in./min
Metal Thickness 1/4 in.
Tip Size 00 in.

0330-0012

Average Kerf Width .06 in.
Cutting Speed 24-28 in./min
Metal Thickness 3/8 in.
Tip Size 0 in.
Average Kerf Width .06 in.
Cutting Speed 20-24 in./min
Metal Thickness 1/2 in.
Tip Size 0 in.

0330-0005

Average Kerf Width .07 in.
Cutting Speed 17-21 in./min
Metal Thickness 3/4 in.
Tip Size 1 in.

0330-0006

Average Kerf Width .09 in.
Cutting Speed 13-17 in./min
Metal Thickness 1 in.
Tip Size 2 in.
Average Kerf Width .09 in.
Cutting Speed 13-17 in./min
Metal Thickness 1 1/2 in.
Tip Size 2 in.

0330-0002

Average Kerf Width .11 in.
Cutting Speed 12-15 in./min
Metal Thickness 2 in.
Tip Size 3 in.
Average Kerf Width .11 in.
Cutting Speed 10-13 in./min
Metal Thickness 2 1/2 in.
Tip Size 3 in.

0330-0007

Average Kerf Width .12 in.
Cutting Speed 9-12 in./min
Metal Thickness 3 in.
Tip Size 4 in.

0330-0008

Average Kerf Width .15 in.
Cutting Speed 8-11 in./min
Metal Thickness 4 in.
Tip Size 5 in.
Average Kerf Width .15 in.
Cutting Speed 7-9 in./min
Metal Thickness 5 in.
Tip Size 5 in.

0330-0009

Average Kerf Width .18 in.
Cutting Speed 6-8 in./min
Metal Thickness 6 in.
Tip Size 6 in.
Average Kerf Width .19 in.
Cutting Speed 5-6 in./min
Metal Thickness 8 in.
Tip Size 6 in.

0330-0013

Average Kerf Width .34 in.
Cutting Speed 4-5 in./min
Metal Thickness 10 in.
Tip Size 7 in.

0330-0014

Average Kerf Width .41 in.
Cutting Speed 3-5 in./min
Metal Thickness 12 in.
Tip Size 8 in.

0331-0002

Average Kerf Width .04 in.
Cutting Speed 28-32 in./min
Metal Thickness 1/8 in.
Tip Size 000 in.

0331-0009

Average Kerf Width .05 in.
Cutting Speed 27-30 in./min
Metal Thickness 1/4 in.
Tip Size 00 in.

0331-0013

Average Kerf Width .06 in.
Cutting Speed 24-28 in./min
Metal Thickness 3/8 in.
Tip Size 0 in.
Average Kerf Width .06 in.
Cutting Speed 20-24 in./min
Metal Thickness 1/2 in.
Tip Size 0 in.

0331-0014

Average Kerf Width .07 in.
Cutting Speed 17-21 in./min
Metal Thickness 3/4 in.
Tip Size 1 in.

0331-0015

Average Kerf Width .09 in.
Cutting Speed 15-19 in./min
Metal Thickness 1 in.
Tip Size 2 in.
Average Kerf Width .09 in.
Cutting Speed 13-17 in./min
Metal Thickness 1 1/2 in.
Tip Size 2 in.

0331-0016

Average Kerf Width .11 in.
Cutting Speed 12-15 in./min
Metal Thickness 2 in.
Tip Size 3 in.
Average Kerf Width .11 in.
Cutting Speed 10-13 in./min
Metal Thickness 2 1/2 in.
Tip Size 3 in.

0331-0017

Average Kerf Width .12 in.
Cutting Speed 9-12 in./min
Metal Thickness 3 in.
Tip Size 4 in.

0331-0018

Average Kerf Width .15 in.
Cutting Speed 8-11 in./min
Metal Thickness 4 in.
Tip Size 5 in.
Average Kerf Width .15 in.
Cutting Speed 7-9 in./min
Metal Thickness 5 in.
Tip Size 5 in.
